ENGLISH
HOPPER HYDRAULIC LIFTING SYSTEM OIL
LEVEL CHECK
WARNING!
This procedure must be performed with the
hopper (4) fully retracted (as shown in the fi gure).
1.
Engage the parking brake with the pedal (84) and the lever
(76).
2.
Turn the ignition key (69) to "0".
3.
Open the hood (23) and secure it with the support rod (55).
4.
Check that the oil level in the tank (41) is between the
minimum (MIN) and maximum (MAX) marks shown in Fig.
25.
5.
If necessary, add oil through the plug (A, Fig. 25), using
the oil specifi ed in Technical Data paragraph.
6.
Disengage the support rod (55) and close the hood (23).
DRIVE SYSTEM OIL LEVEL CHECK
1.
Engage the parking brake with the pedal (84) and the lever
(76).
2.
Turn the ignition key (69) to "0".
3.
Open the hood (23) and secure it with the support rod (55).
4.
Check that the oil level in the tank (28) is between the
minimum (MIN) and maximum (MAX) marks shown in Fig.
26.
5.
If necessary, add engine oil 15 W 50 through the plug (A,
Fig. 26).
6.
Disengage the support rod (55) and close the hood (23).
28
USER MANUAL
146 2275 000(2)2007-02 A
SR 1300H D

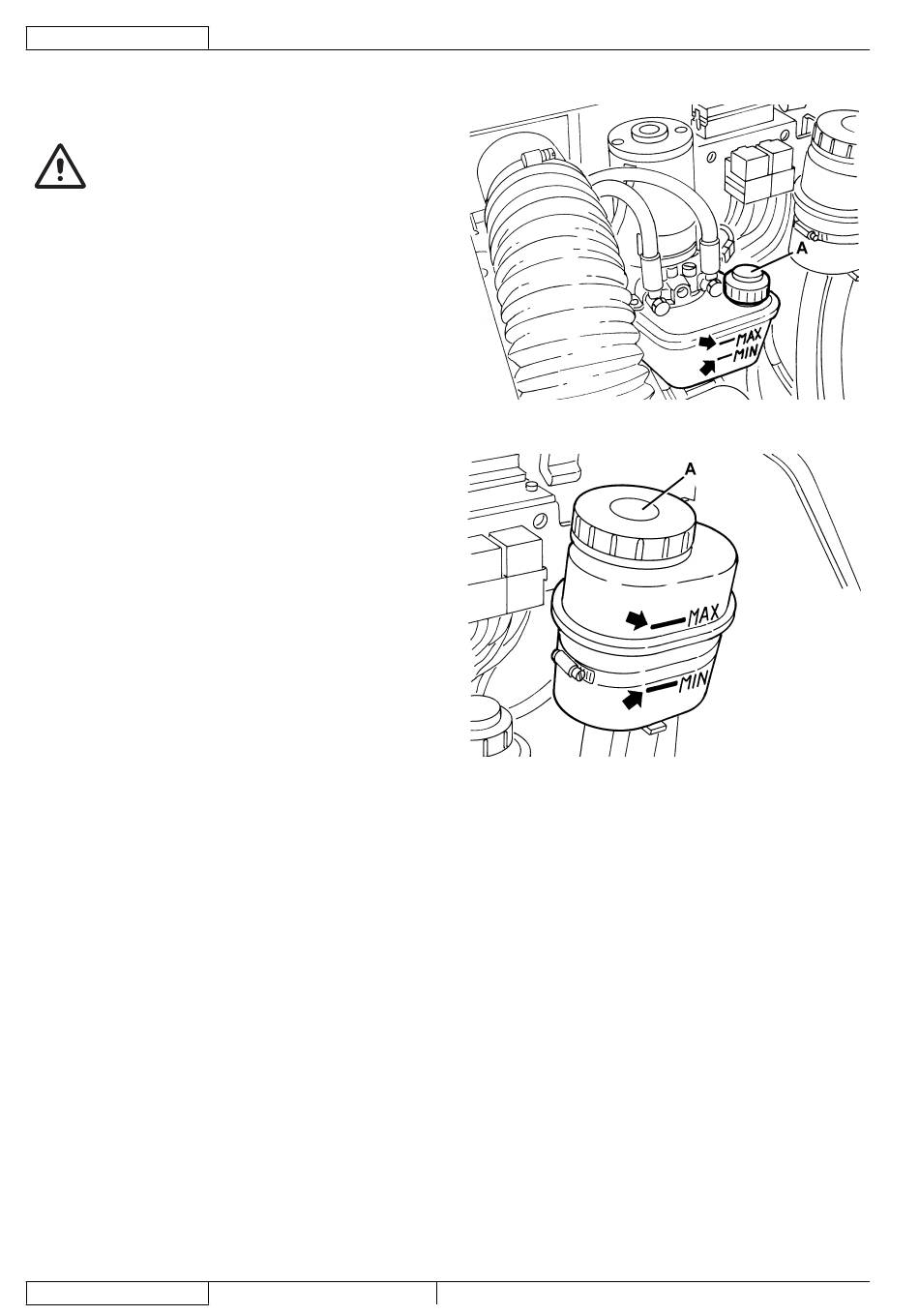

Figure 25
Figure 26
S311434
S311435
