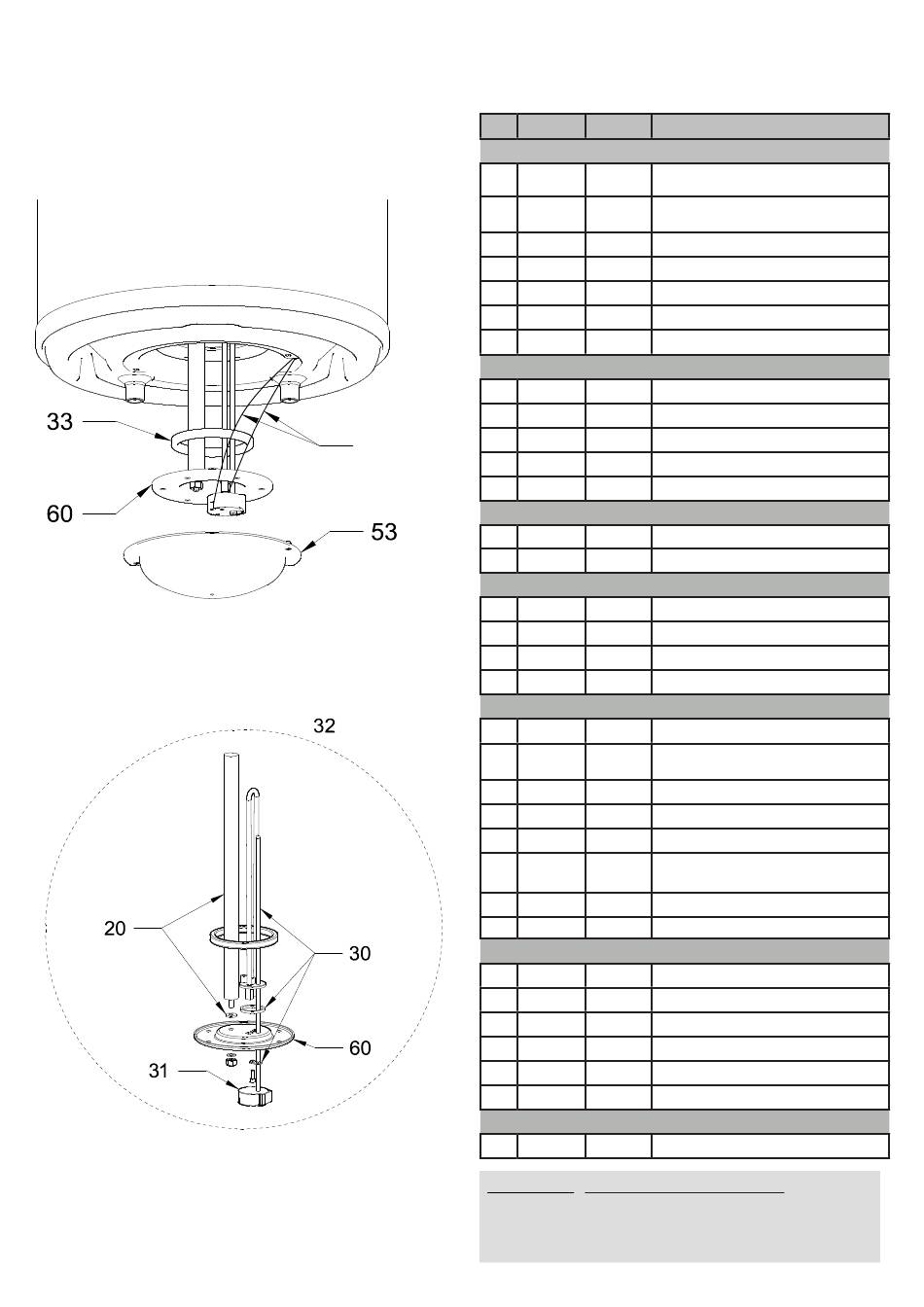

Dimplex Edel 100L Installatiehandleiding pagina 38
Lucht/water wandgemonteerde warmtepompboiler
38
-
installaterus
Safety
aquastat
cables
WARMTEPOMPBOILER 100 - 150L LUCHT/WATER
Rep
100L
150L
Regulation / Display
1
B1244096
B1244096
Electronic circuit board controller
Circuit board + display +H2P program - CET
2
B4992816
B4992816
EMR
3
B4992653
B4992653
Display screen cable - 480mm + foam
4
B1244576
B1244576
Temperature sensor lg460mm
5
B1244577
-
Temperature sensor lg700mm
5'
-
B1244575
Temperature sensor lg1200mm
6
B4993072
B4993072
Temperature sensor kit 900mm
Electricity
10
B4992547
B4992547
Compressor replacement kit + accessories
11
B1244883
B1244883
Ø140 fan
11
B4994617
B4994617
Fan casing kit
12
B1244426
B1244426
1μF clip-on capacitor
43
B1239212
B1239212
650 mm coil
Protection
20
B1944178
-
340mm anode kit
20'
-
B1944184
450mm anode kit
Electrical back-up
30
B4991949
B4991949
1000W heating element kit + seal
31
B1239160
B1239160
80
32
B4994442
B4994482
Lower flange (assembled) + flange seal
33
B1657539
B1657539
Tank flange seal
Refrigerant circuit
40
B1472860
B1472860
Finned heat exchanger
41
B1472871
B1472871
Dehumidifying filter (2 intakes/ 1 exhaust)
42
B1472873
B1472873
Thermostatic expansion valve
43
B4993609
B4993609
Solenoid valve and coil kit
44
B1244424
B1244424
1/4" pressure switch / 600mm
45
B1973127
B1973127
Refrigerant loading pipe + schrader valve
-
B1972914
B1972914
Perforating clamp
-
B1972915
B1972915
Lock clamp
Casing
50
Control panel dial
B1758866
B1758866
51
Electrical box cover and label
B4992027
B4992027
53
White heating element cover
B1759506
B1759506
54
Condensate draining T-pipe
B1759504
B1759504
55
Cover and shell kit
B4995208
B4995208
60
Cover flange enamelled
B4594440
B4594440
Hydraulic
-
Dielectric fittings
B1594108
B1594108
Opmerking :
Beschikbaarheid van onderdelen :
Reserveonderdelen voor onze producten zijn beschikbaar
gedurende 10 jaar vanaf de datum waarop de
warmtepompboiler productie wordt stopgezet, behalve in
geval van overmacht.
