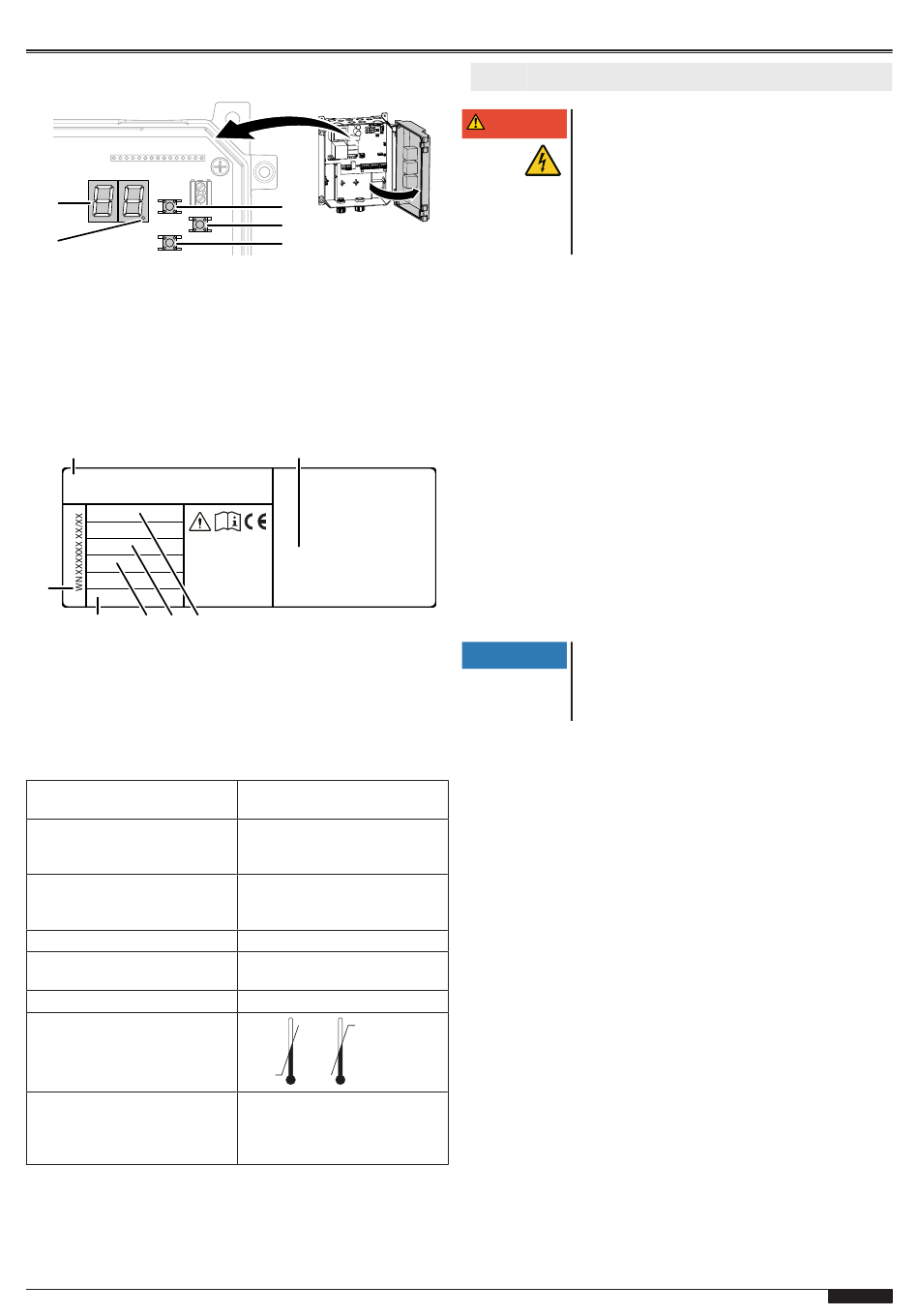

Programming control elements
1
2
1 LED display
2 LED spot (confirmation
of the programming
entry)
Rating plate
The rating plate is located at the side on the control housing. Ob-
serve the power supply specifications.
1
7
Made in Germany
6
5
4
1 Control type
2 Manufacturer and address
3 Supply voltage
4 Amperage
Technical data
Height x width x depth
Cable feed-throughs
Supply voltage
Control voltage
Max. motor power
Protection type
Operating temperature
Manufacturer
3
4
5
3 Up navigation button
4 Programming button (Prog
button)
5 Down navigation button
2
3
5 Max. motor power
6 Protection type
7 WN number
250 mm x 215 mm x 120 mm
Assembled vertically
6 x M20
2 x M16
2 x M20 V cutout
3 N~ 400 V
3~ 230 V
1 N~ 230 V
24 V DC
Max. 0.6 kW with 230 V AC
Max. 1.1 kW with 400 V AC
IP 54
+50 °C
-20 °C
Novoferm tormatic GmbH
Eisenhüttenweg 6
D-44145 Dortmund
www.tormatic.de
4
Installation
Hazardous voltage
DANGER
The product runs on high voltage Before starting
with the installation,observe the following:
•
Have all work on electrical connections car-
ried out by a skilled electrician.
•
The power connection must be executed in
compliance with the mains voltage avail-
able.
Follow the instructions as well as the illustrations in the
"Connection diagrams" chapter.
1.
Tools required
For the assembly of the control, you require the following tools:
•
wooden folding rule or tape measure
•
wrench SW13
•
cross-tip screwdriver Phillips; size 2
•
drilling machine
•
drill 6 mm
•
Torx screwdriver, size T20
•
slotted screwdriver for electricians
•
spirit level
•
marking pencil
2.
Opening the control cover
Open the housing cover by either loosening the two screws on
the left or right on the cover.
3.
Assembly of the control
Assemble the control as specified on the drilling drawing.
Selection of the place of installation
NOTICE
When selecting the place of installation, observe
the preconditions in compliance with the tech-
nical data.
4.
Terminal designation
J1
Start / pulse input (OPEN / STOP / CLOSE
J2
Photoelectric safety barrier 2- or 4-wire
J3
Closing edge safety device OSE / 8K2 / DW, slack rope
switch, wicket door contact
J4
Antenna
J5
Connection of radio receiver
J6
No function
J7
No function
J8
Control buttons
J9
Digital limit switch - motor cable
J11
No function
X1
Power connection
X2
Door drive
X3
Potential-free relay contact 1, door status relay
X4
24 V DC, max. 150 mA
T75 DES
EN - 17
