Installation
5
Place the firebox in the framing and level it
6
Secure mounting brackets
Optional step: disconnect the heater
7
(ONLY for installation with no heat)
12
Heater enabled
4.
jumper position
3.
2.
1. HEAT
Heater disabled
jumper position
4.
3.
2.
4. HEAT

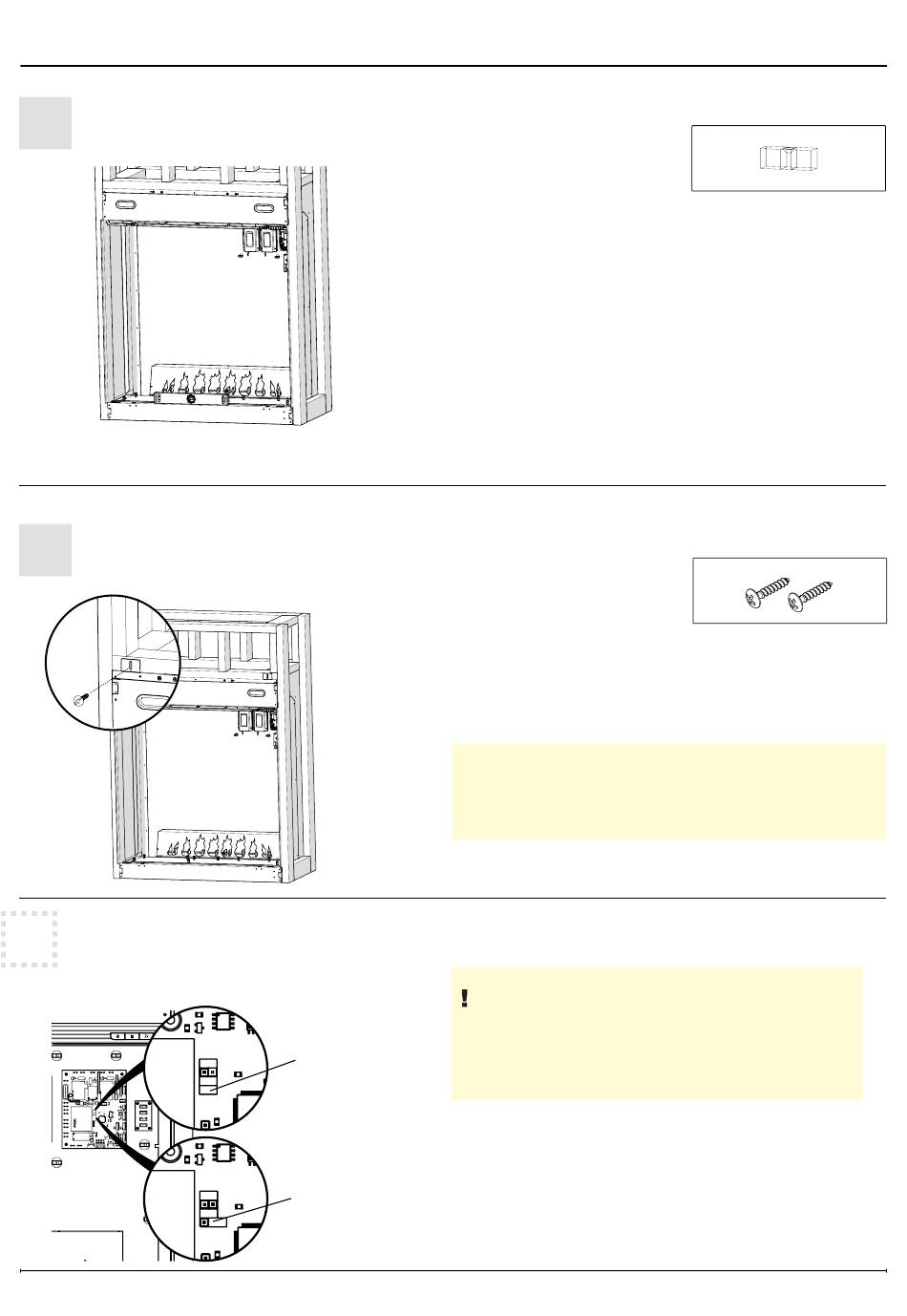

1. Lift the firebox into the opening in the frame using
the handles on the back and sides of the fireplace.
2. Using the bubble level, ensure the firebox is level,
adjusting as necessary.
Secure the mounting brackets at the top of the fireplace
to the framing with the provided wood screws.
!
NOTE: The mounting brackets are equipped with
slots to allow small adjustments to fit the framing.
Ensure both brackets are aligned.
NOTE: This option is not recommended for
seasonal heat disabling. Temporary disabling of
the heater can be achieved through the onboard
control; see "Heat Disable" in Operation table for
instructions.
Follow these instructions only when an installation
without heat is required.
1. Locate the driver board. The heater hardware
disconnect jumper location is labeled "1. HEAT".
2. Pull out the heater hardware disconnect jumper.
Place it only on one of the pins, as shown.
4.
3.
2.
4. HEAT
