Installation
!
NOTE: Two or more people are required for installation. Use the handles located at the top of the
fireplace on the front and back to maneuver the unit.
1
Build framing
Framing Dimensions
Width
Model
ASP30-EU
782 mm
ASP36-EU
934 mm
ASP42-EU
1086 mm
C
C
Height
A
B
966 mm
1118 mm
1194 mm
A
A
B
B

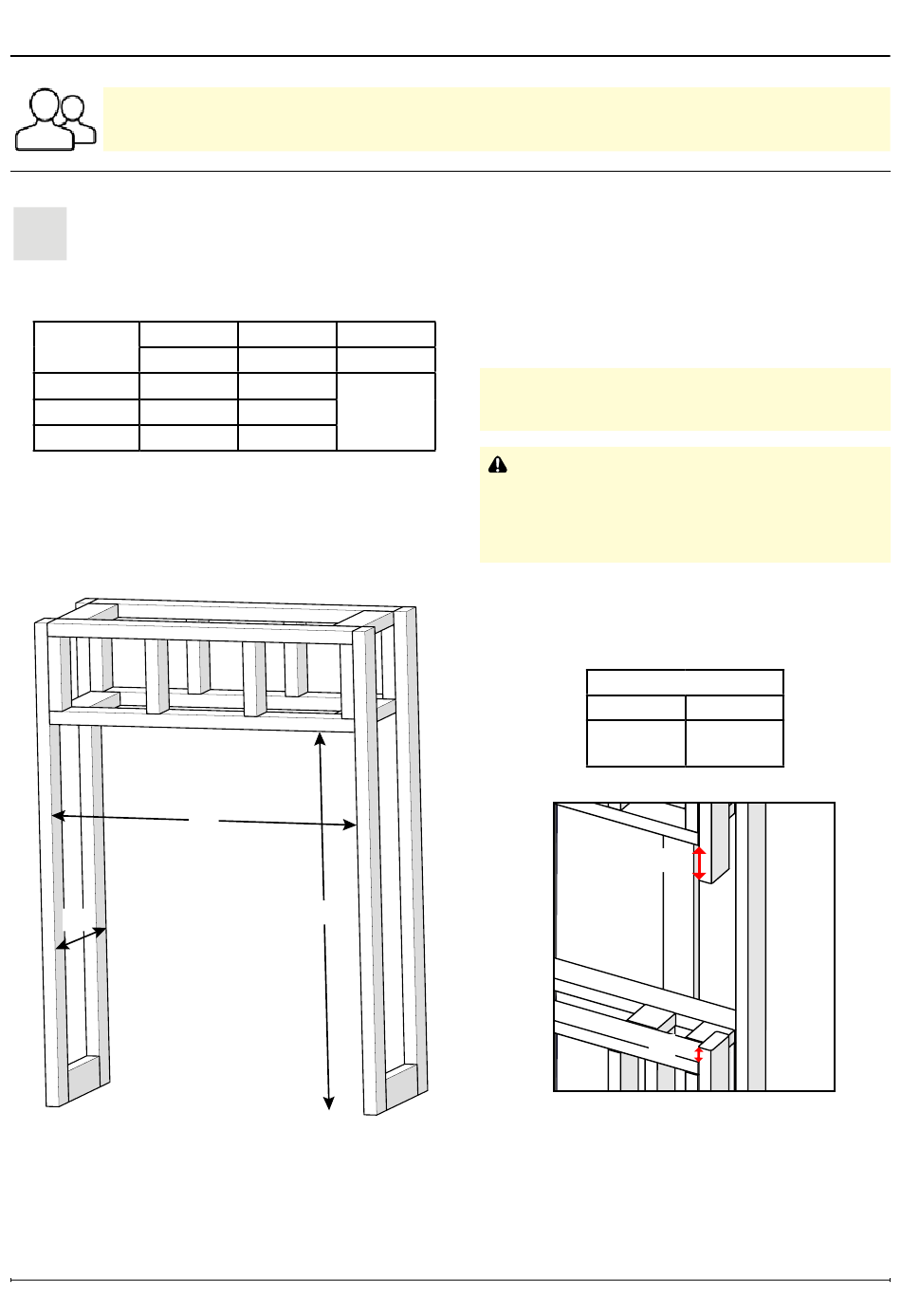

Prepare a wall with a framed opening, using the
dimensions in the table.
Depth
C
!
NOTE: Wiring connections are located at the
back of the firebox, in the top right corner.
458 mm
CAUTION: This fireplace is NOT load-bearing.
Ensure the opening for the fireplace is framed
in such a way that the weight of the building
materials will not create pressure on the top of
the fireplace.
Open-sided install
D
3 1/2"
90 mm
D
E
Alternate view for open-sided installation
E
1"
25 mm
