Installation

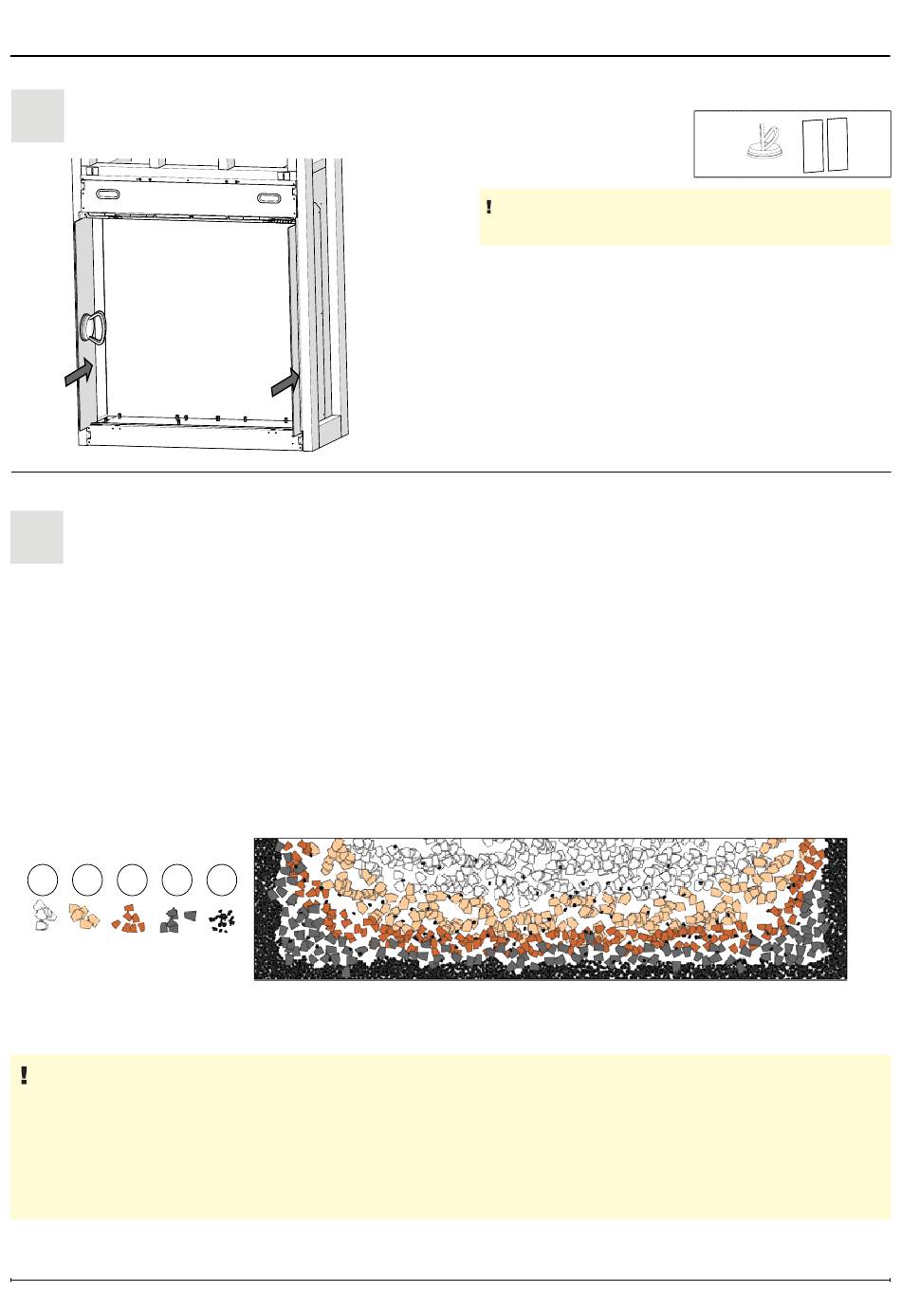

Install the side glass
10
11
Place tumbled glass and gravel
For best results when using the supplied glass media, arrange as follows:
1. Pour the white frosted glass on the ember bed closest to the mirrored glass.
2. Pour the amber frosted glass around the edge of the white frosted glass.
3. Pour the dark amber around the edge of the light amber frosted glass.
4. Pour the black frosted glass around the edge of the dark amber frosted glass.
5. Sprinkle the black and grey gravel over the glass media.
1
2
3
4
NOTE:
It is possible to use custom media ornaments to decorate your firebox. The custom media must fit easily
without scratching the glass or bowing the ember bed, and must not be composed of liquid, which could interfere
with the safety of the firebox.
If removing any logs in the arrangement, the corresponding wire will need to be removed from the log expansion
board, located under the ember bed. Each remaining wire must be plugged sequentially in the log expansion
board, beginning with the J1 position.
14
5
NOTE: The side glass should be installed even on
closed-sided installations.
1. Secure the suction cup to the side glass to
prevent fingerprints on the outside of the glass.
2. Slide the glass in from the from the front. Once
it place it will drop to its final position.
3. Clean the glass with a damp cloth and dry it
with a lint free dry cloth. Ensure there are no
debris or finger prints on the mirrored glass,
inner sides of the side glass, or on the inner
side of the front glass before you begin
