Installation
13

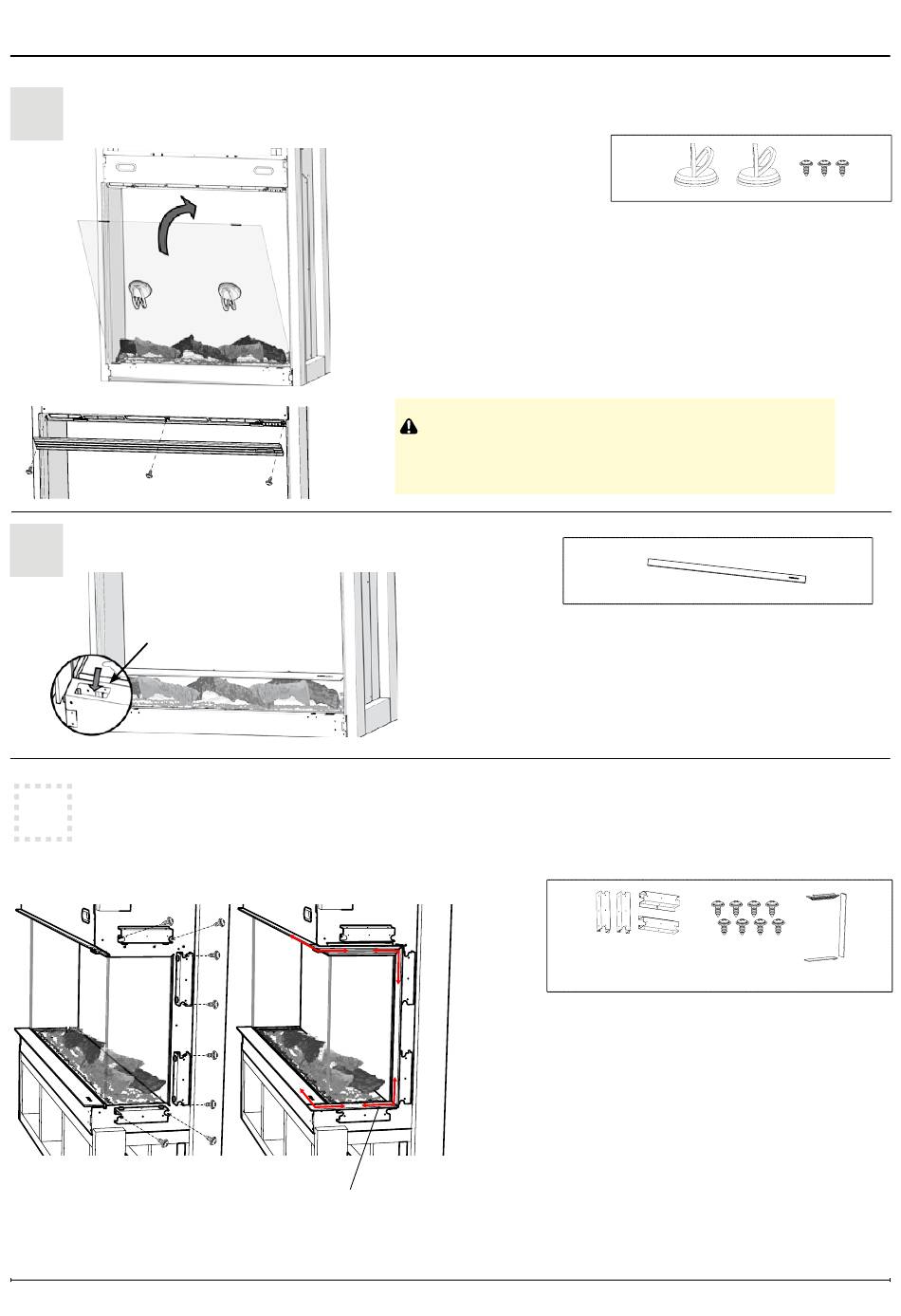

Install the front glass and top grille
14
Install the sill trim
Bracket location
Bracket location
Optional step: install side brackets and trims
15
(ONLY for open-sided installation)
16
1. Ensure the suction cup is securely attached to the outer side of
the front glass.
2. Using the suction cup to assist, gently place the front glass
into the bottom slot at an angle, and tilt the glass into a vertical
position.
3. Secure the top grille with the three provided screws.
CAUTION: The magnets at the top will hold the glass
in place to facilitate installation. It is necessary to
install the grille to ensure the glass does not fall.
Align all trim pieces
The sill trim is secured with magnets.
Place the Dimplex sill trim on the bottom lip of
the fireplace, ensuring the bracket on the trim is
aligned to the left.
For bay or corner installations, install the side trim
on each open side.
1. Loosely install the four trim brackets on each
side using the screws provided.
2. Before fastening the screws entirely, connect the
magnetic trim pieces and align them to the top
grille and bottom sill.
3. Continue fastening the screws until all the trims
are aligned.
