NOTICE
■ This notice refers to risks which can result in
damage to property.
► Damage to property can be avoided by tak‐
ing the precautions mentioned.
2.3
Symbols in Text
This symbol refers to a chapter in this
instruction manual.
3
Overview
3.1

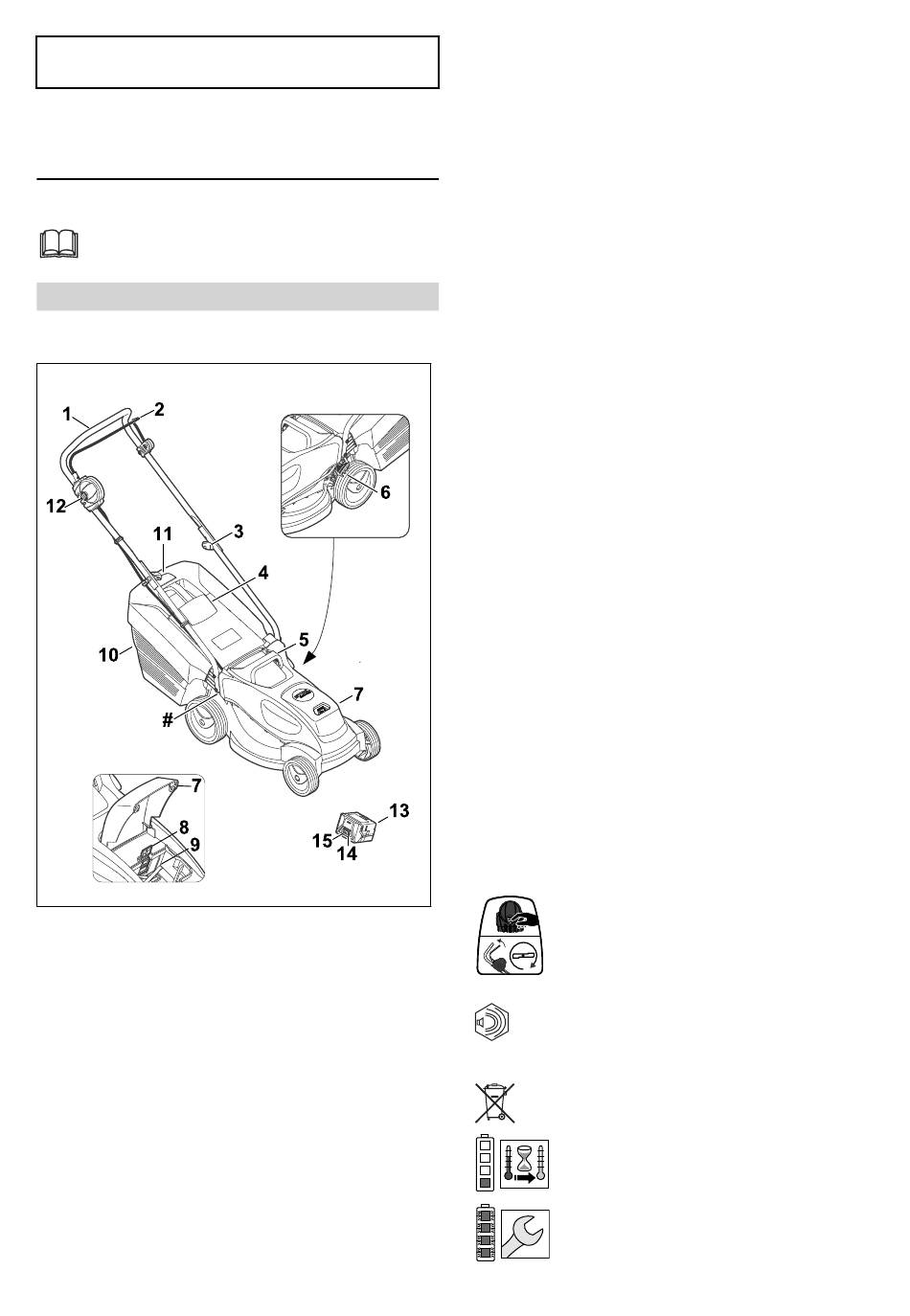

Lawn Mower and Battery
1 Handlebar
The handlebar is used to hold, guide and
transport the lawn mower.
2 Control bar
The control bar switches the blade on and off
together with the locking button.
3 Rotary knob
The rotary knob clamps the upper handlebar
onto the lower handlebar and is used to fold
down the handlebar.
4 Discharge flap
The discharge flap closes off the discharge
chute.
30
5 Transport handle
The transport handle is used to transport the
lawn mower.
6 Lever
The lever is used to set the cutting height.
7 Flap
The flap covers the battery.
8 Locking lever
The locking lever keeps the battery in the bat‐
tery compartment.
9 Battery compartment
The battery compartment holds the battery.
10 Grass catcher box
The grass catcher box collects the mown
grass.
11 Level indicator
The level indicator shows how full the grass
catcher box is.
12 Locking button
The locking button switches the blade on and
off together with the control bar.
13 Battery
The battery supplies the lawn mower with
power.
14 Button
The button activates the LEDs on the battery.
15 LEDs
The LEDs indicate the battery charge state
and faults.
# Rating plate with machine number
3.2
Symbols
The symbols can be on the lawn mower, battery
or charger and have the following meaning:
Activate the blade.
Guaranteed sound power level in
L
accordance with Directive 2000/14/EC
WA
in dB(A) for the purpose of comparing
the sound emissions of products.
Do not dispose of the product with domes‐
tic waste.
1 LED illuminates red. The battery is
too warm or too cold.
4 LEDs flash red. There is a fault in the
battery.
3 Overview
0478-131-9667-C
