11.4.3
Tandwieladapterplaat AG voor lineaire modules HM-B, lineaire tafels HT-B
en omega-aandrijving HC-B

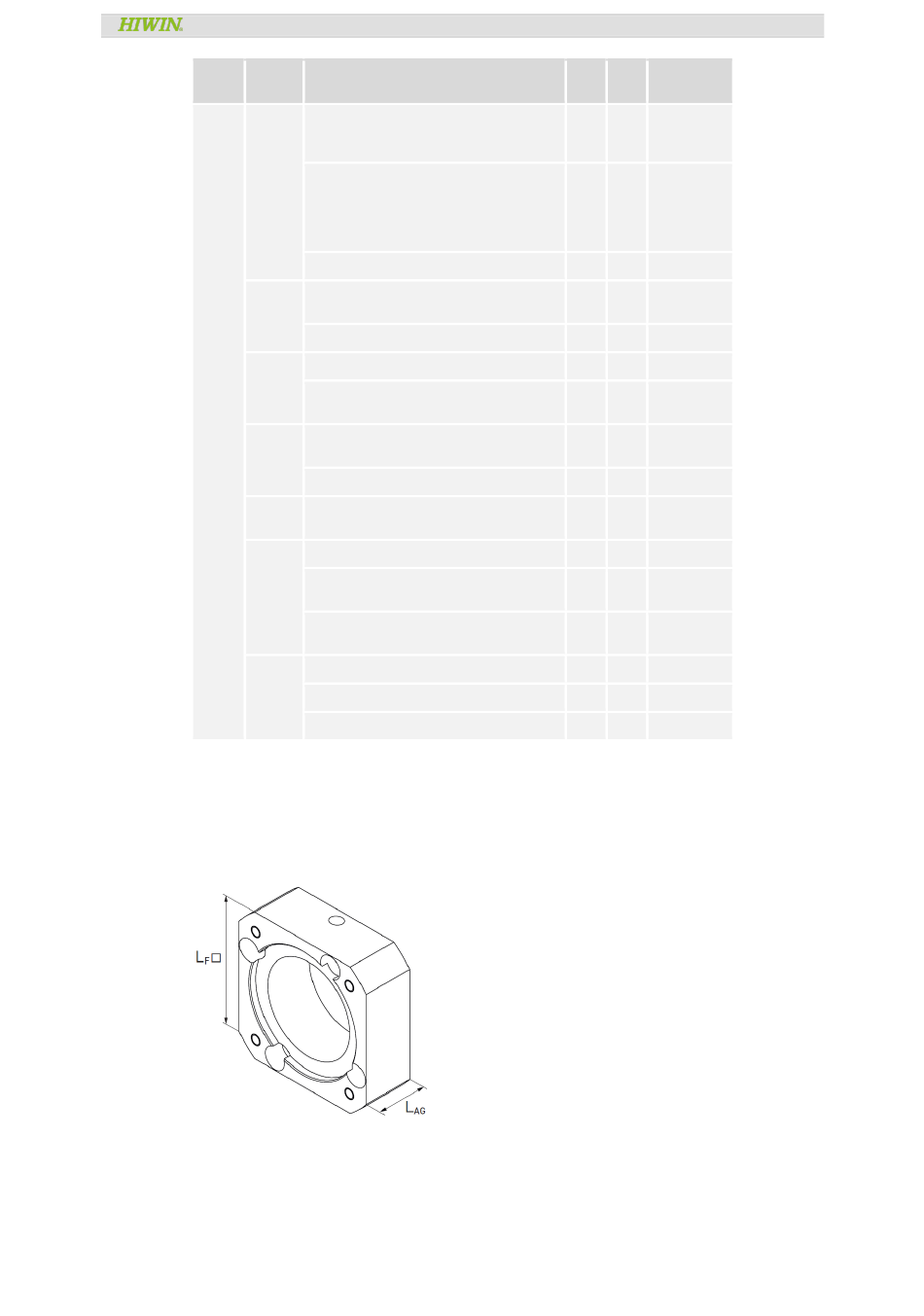

Afb. 11.13: Tandwieladapterplaat AG voor lineaire modules HM-B, lineaire tafels HT-B en
omega-aandrijving HC-B
HM-B, HT-B, HC-B, HD, HS
Bijlage 1: Aandrijvingsaanpassing
HMB_HTB_HCB_HD_HS-01-6-NL-2306-MA
L
L
Artikelnummer
F
AM
[mm]
[mm]
104
46
25-000456
138
56
25-000460
192
76
25-000466
142
46
25-000461
190
46
25-000464
140
46
25-000458
138
56
25-000460
140
46
25-000459
190
56
25-000465
140
46
25-000459
116
46
25-000457
138
56
25-000460
163
56
25-000463
116
46
25-000457
138
56
25-000460
192
76
25-000466
