UNIT INSTALLATION
6.2 REMOVING THE COVERS
If it is necessary to access to the indoor unit components, please
follow these operations.
6.2.1 Removing the indoor unit covers
?
N O T E
•
The pictures shown correspond to the YUTAKI S80 TYPE 1, but the
procedure for removing covers is exactly the same for the TYPE 2
except in case of lateral covers.
•
Front cover needs to be removed for any task inside the indoor unit.
•
Back cover does not need to be removed.

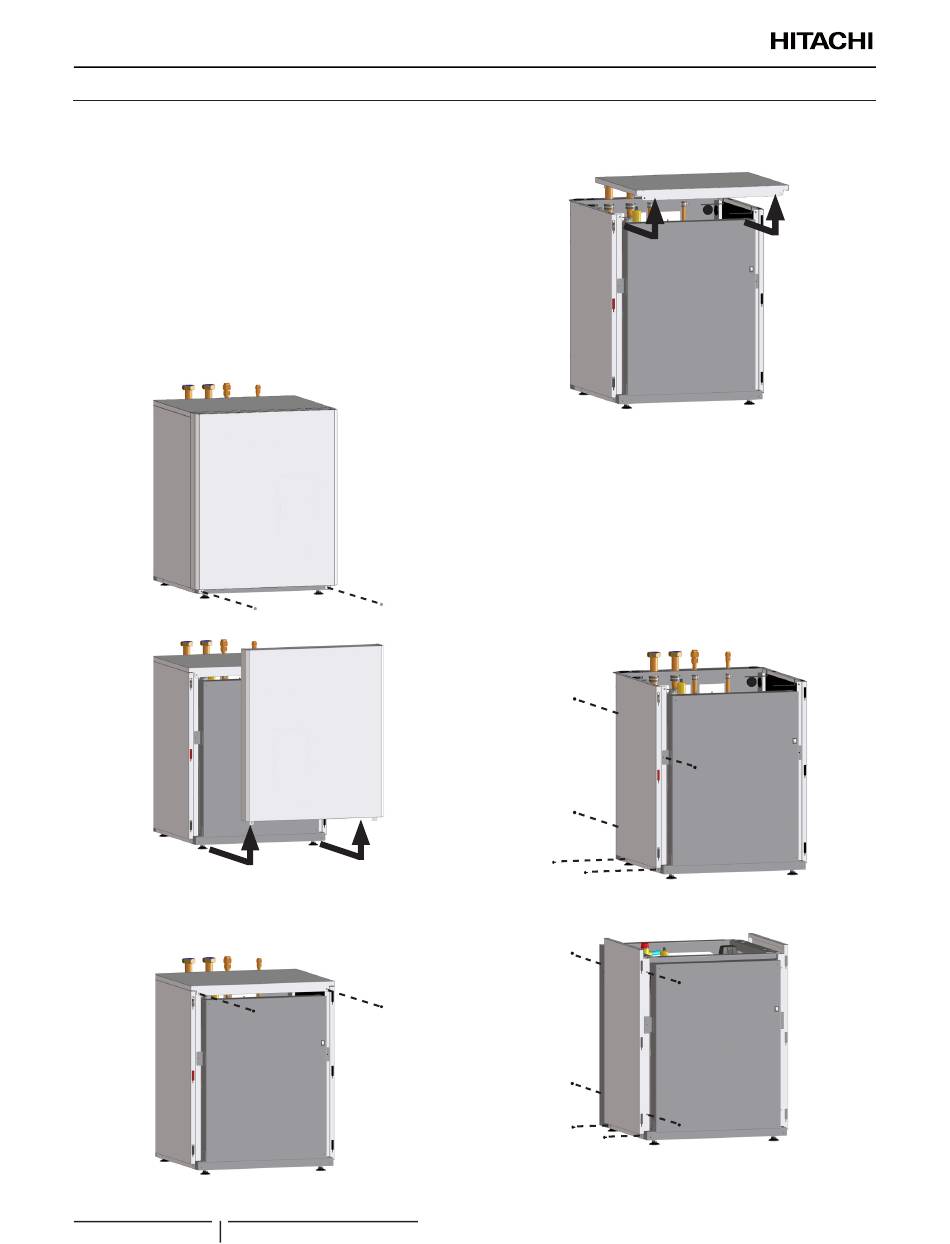

Removing the indoor unit front cover
1 Unscrew the 2 fixing screws at the lower side.
2 Pull the indoor unit front cover forward and then remove it.
Removing the indoor unit upper cover
1 Remove the indoor unit front cover.
2 Unscrew the 2 upper fixing screws.
24
PMML0340B rev.1 - 03/2016
All manuals and user guides at all-guides.com
3 Pull the indoor unit upper cover forward and then remove it.
?
Pictures refer to the left side cover, but the removal procedure is exactly
the same for the right side cover.
1 Remove the indoor unit front cover.
2 Remove the indoor unit upper cover.
3 Unscrew the screws which fix the cover to the indoor unit.
TYPE 1 (5 screws)
TYPE 2 (6 screws)
Removing the indoor unit lateral cover
N O T E
