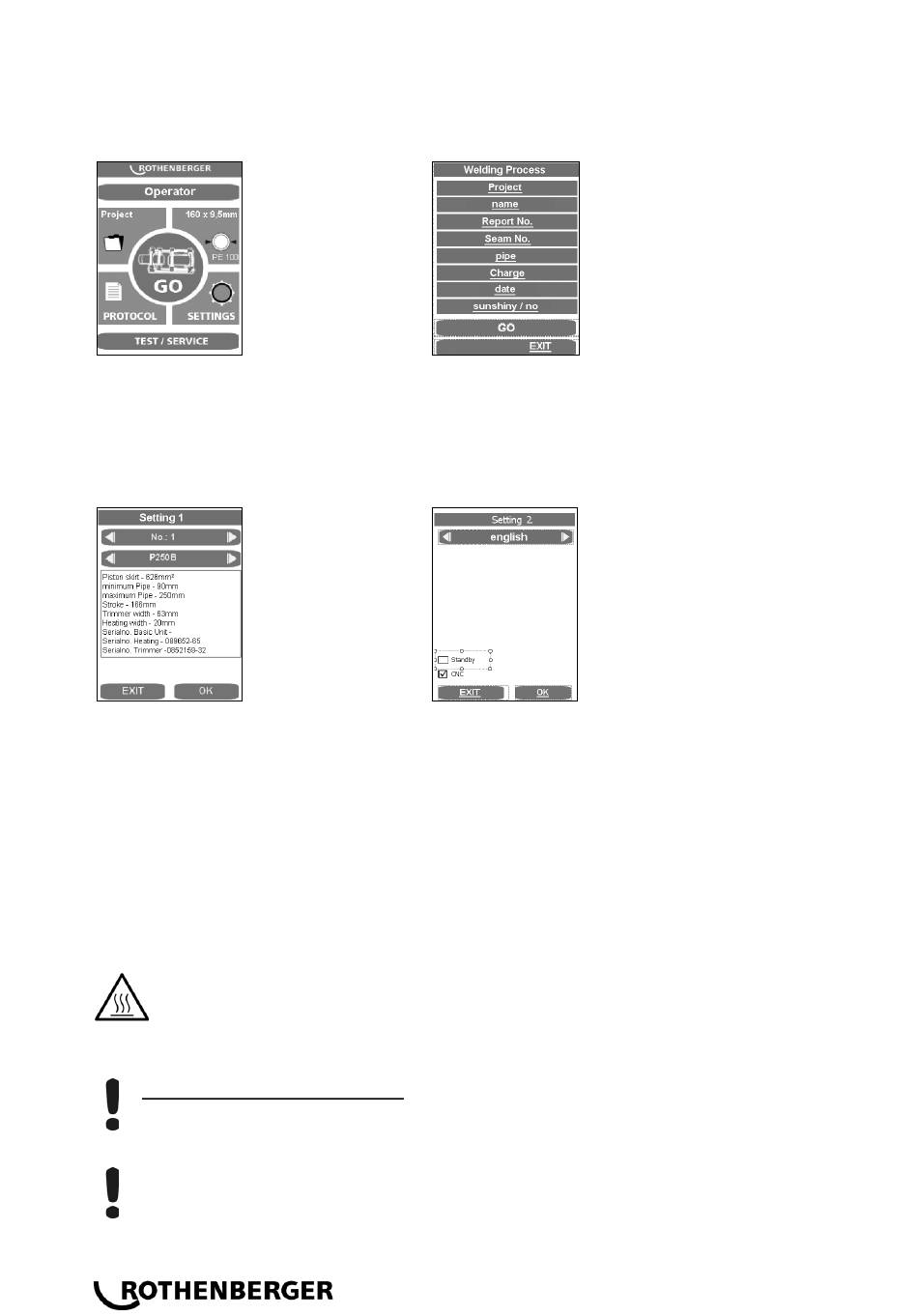

Connect the electrical plug of the hydraulic unit (17) to the power supply according to the
model plate. If the start screen does not appear, unlock the emergency OFF switch.
A signal tone will sound, and a dot will light up on the display (2).
Upon first use, check the date and time. To do this, press the GO button. (To change, see point
3.6) . To close the menu, press EXIT.
If you press GO key and no basic machine is connected, the following message appears:
„Attention! No basic machine is detected. Please connect."
If the error message still appears after connection, then the connection is defect, but there is the
possibility to weld and log in premium mode (see 3.2.4).
During first use, set the language. German is set by default. To change the settings, press
and change using OK in Setting 2.
Use the arrow keys to select the desired language and press OK to confirm. The selected lan-
guage will be saved after the first welding process.
It is possible to switch the screen to standby mode. The screen saver becomes active when the
hydraulic unit is shut off with the button (6).
Turn the hydraulic unit on (press button (6)).
After it is switched on, the heating element warms up.
The current temperature is shown on the display (9). The control is active when a dot lights up
on the display. When the set temperature is reached, the two LEDs (current and target) light up.
After another 10 minutes, the heating element is ready to use. Check the temperature with
a temperature measurement device.
To adjust the temperature of the heating element, see point 3.5.
Risk of serious injury! The heating plate can reach temperatures of over 300°C (575°F)!
We highly recommend storing the heating plate in the designated carrying frame
immediately after use!
Pressing longer on the button (7) shuts off the heat. The dot on the display (9) goes off. Pressing
again turns the heat back on.
Hydraulik ROWELD P500-630B: Check the direction of rotation! The machines are
clamped to turn clockwise at the factory. Open and close the machine with the hydraulic
unit. If there is no movement, use an appropriate tool to switch the phase inverter on the
electrical plug!
Note: Do not turn the hydraulic unit on if the direction of rotation is wrong (this may destroy
it)!
Enter or select the welder name „Operator".
32
