Heating plate SA: Insert the heating element between the two work pieces in the basic ma-
chine, and make sure that the heating plate supports are seated in the notches of the re-
moval device.
Heating plate VA: Place the heating element on both acceptance points in the basic ma-
chine and swivel the hot plates between the pipes.

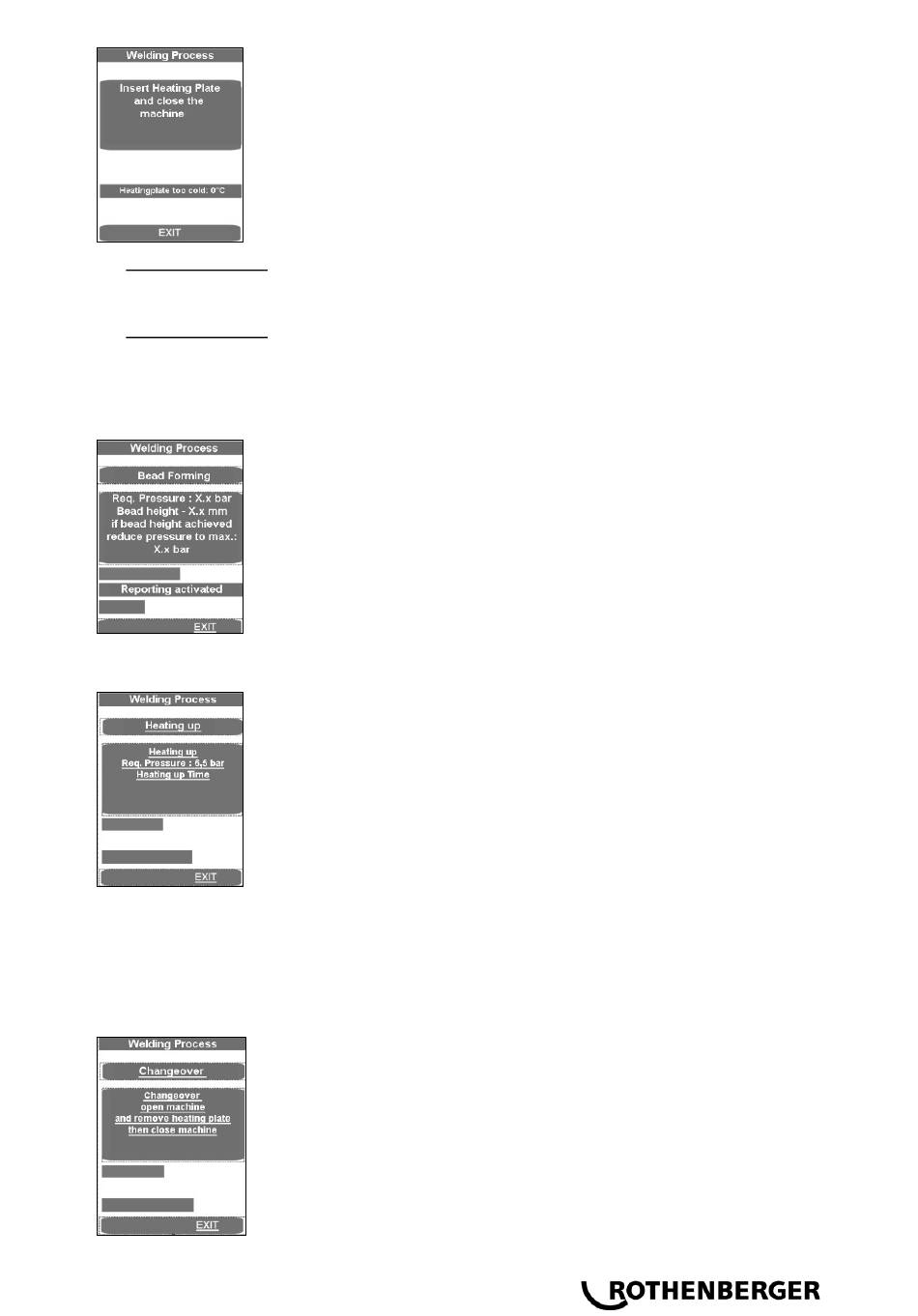

Move the machine together by pressing the text field. The adjusting pressure is automatical-
ly adjusted and maintained.
Now all welding parameters have been stored, and the log activated.
As soon as the necessary bulge height has been uniformly reached on the entire circumference
of both tubes, the pressure is automatically released and the warm-up process begins.
Set the pressure so that the ends of the work pieces can again be lain uniformly and nearly
pressure-free onto the heating element.
A signal sounds shortly before the end of the warm-up time.
At the end of the warm-up period, the work pieces move apart, the heating element SA must
be removed, or the heating element VA is automatically swung out and the work piece ends
move together.
The pressure is linearly raised to the appropriate joining pressure.
The form shows the temperature of the heating plate.
The display bar shows up in blue if the temperature is too low, and in
red when it is too high. When it is in the target range, it displays as
green.
The machine can only be run in the green target range.
The upper progress bar shows whether the pressure lies within the
correct range (green) or within a permissible (yellow) tolerance range
or whether it lies outside (red) the tolerance range. The actual pres-
sure is shown on the display (2).
