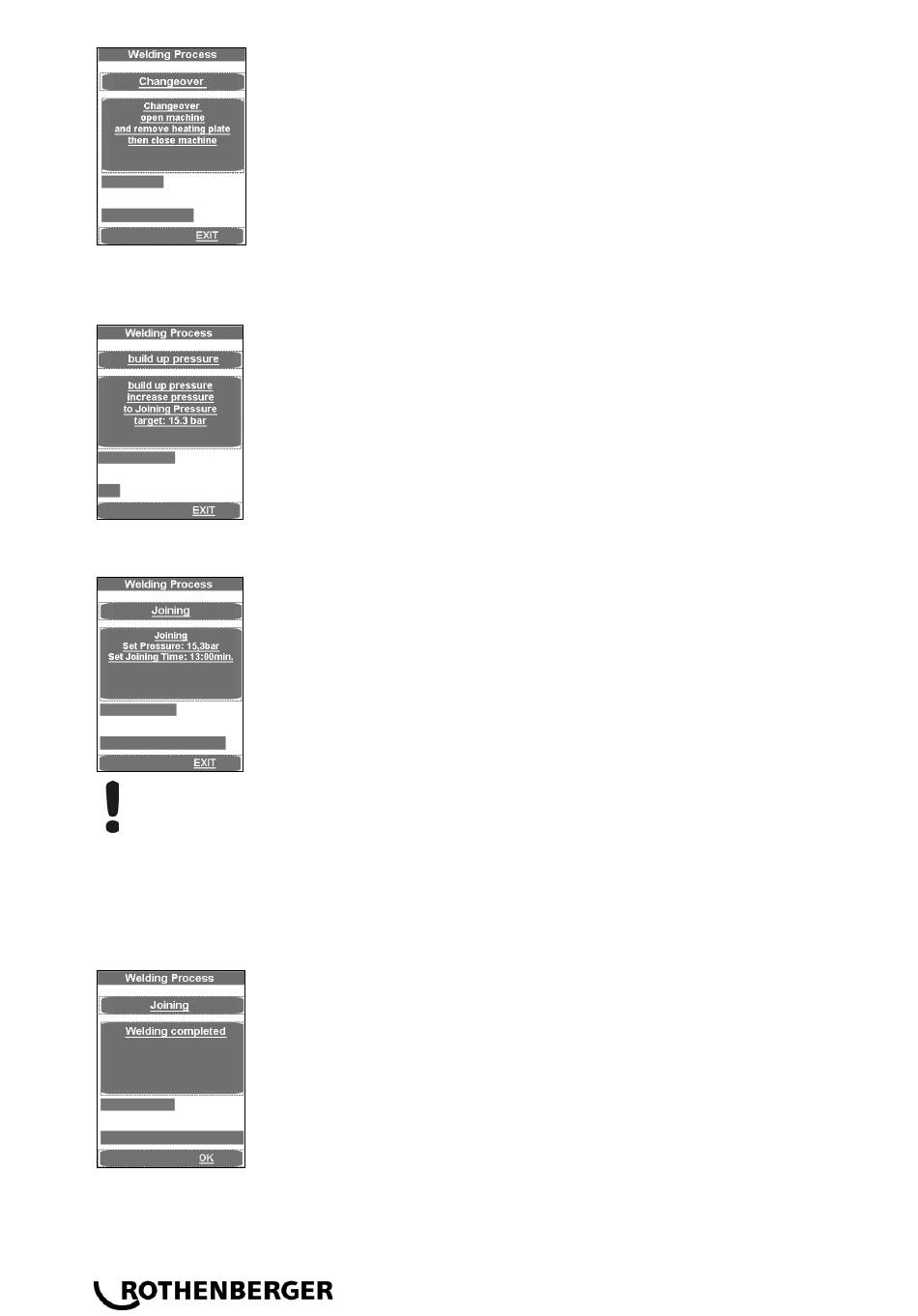

Stop the bringing together process by releasing the buttons shortly before the ends of the
workpieces make contact (about 1 cm.) and press the buttons again immediately. The pres-
sure is linearly raised to the appropriate joining pressure.
When joining pressure is reached, the program automatically goes to the joining process and the
t4 timer starts.
Attention: Hold down the Release button (10) and the Close machine button (11) until the
joining pressure is reached. Then the hydraulic unit shuts off and the buttons can be
released!
The pressure is monitored and automatically regulated again. If the hydraulic system
repumps too often (meaning there is high pressure loss), have it checked.
Put the heating element back in the storage case.
The welding process is ended after the cooling down time has expired, is stored, a signal
sounds and the pressure is dissipated automatically.
Conclude with use of the welding menu by pressing OK.
Dissipate the pressure completely by pressing the button (3).
Unclamp the welded work pieces and remove them.
42
The upper progress bar shows whether the pressure lies within the
correct range (green) or within a permissible (yellow) tolerance range
or whether it lies outside (red) the tolerance range. The time lapse is
shown below. The actual pressure is shown in display (2) and the
remaining joining time in display (9).
ENGLISH
