When joining pressure is reached, the program automatically goes to the joining process and the
t4 timer starts.
The pressure is automatically monitored and regulated. If the hydraulic system repumps too of-
ten (meaning there is high pressure loss), have it checked.
Put the heating element back in the storage case.
The welding process is ended after the cooling down time has expired, is stored, a signal
sounds and the pressure is dissipated automatically.
Conclude with use of the welding menu by pressing OK.
Dissipate the pressure completely by pressing the button (3).
Unclamp the welded work pieces and remove them.
Move the basic machine apart. The machine is ready for the next welding cycle.
Transferring the log:
This report file should be processed using the ROTHENBERGER Dataline 2 software and a
computer.
All welding parameters can be found in the enclosed welding tables.
38

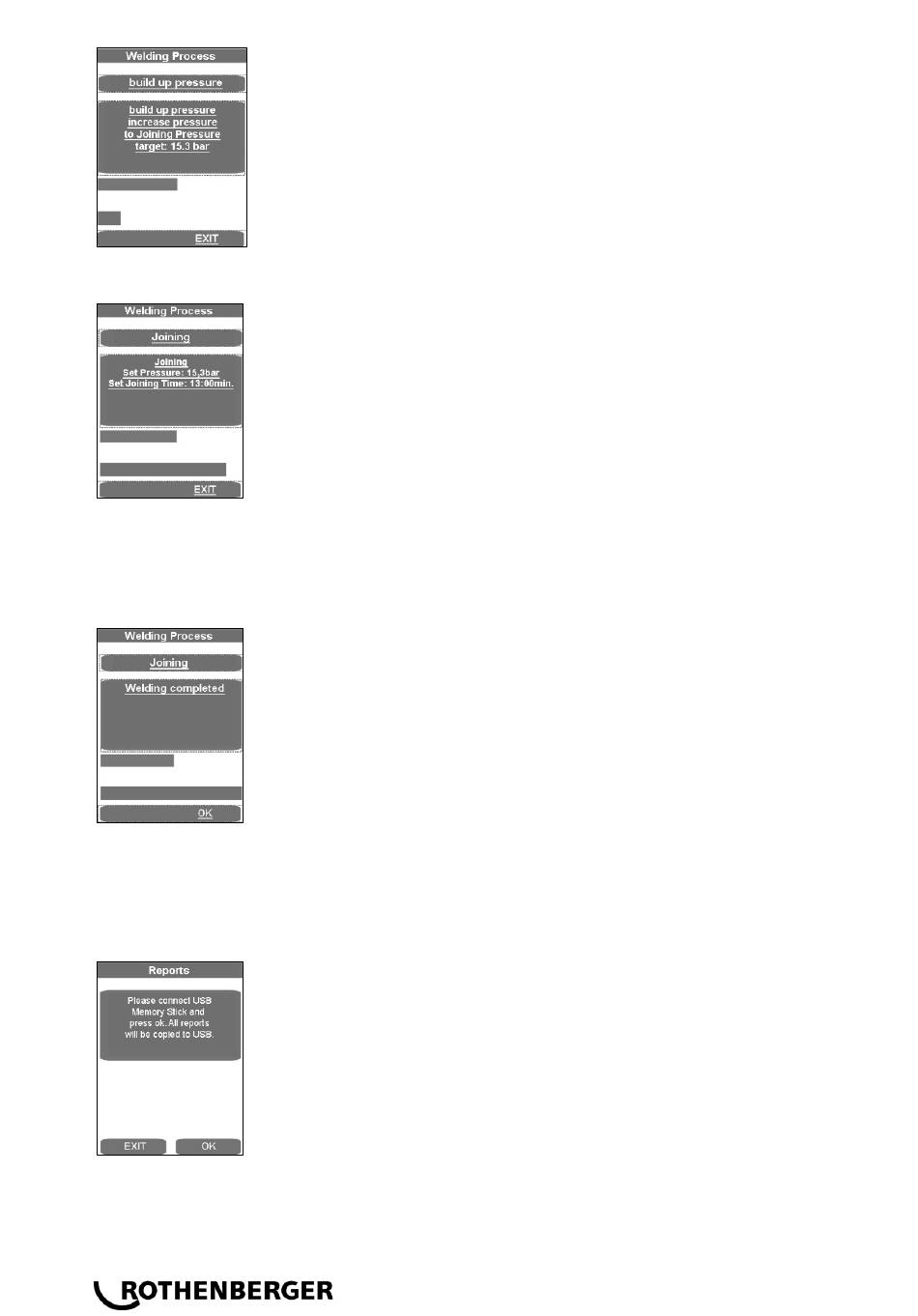

The upper progress bar shows whether the pressure lies within the
correct range (green) or within a permissible (yellow) tolerance range
or whether it lies outside (red) the tolerance range. The time lapse is
shown below. The actual pressure is shown in display (2) and the
remaining joining time in display (9).
In the Log menu item, these can be saved with OK, if a USB stick is
connected. The window then closes automatically.
ENGLISH
