Rotorgasmeters
Beschikbare talen
Beschikbare talen
Honeywell
2.2 Index versions
The meter can be equipped with various index versions:

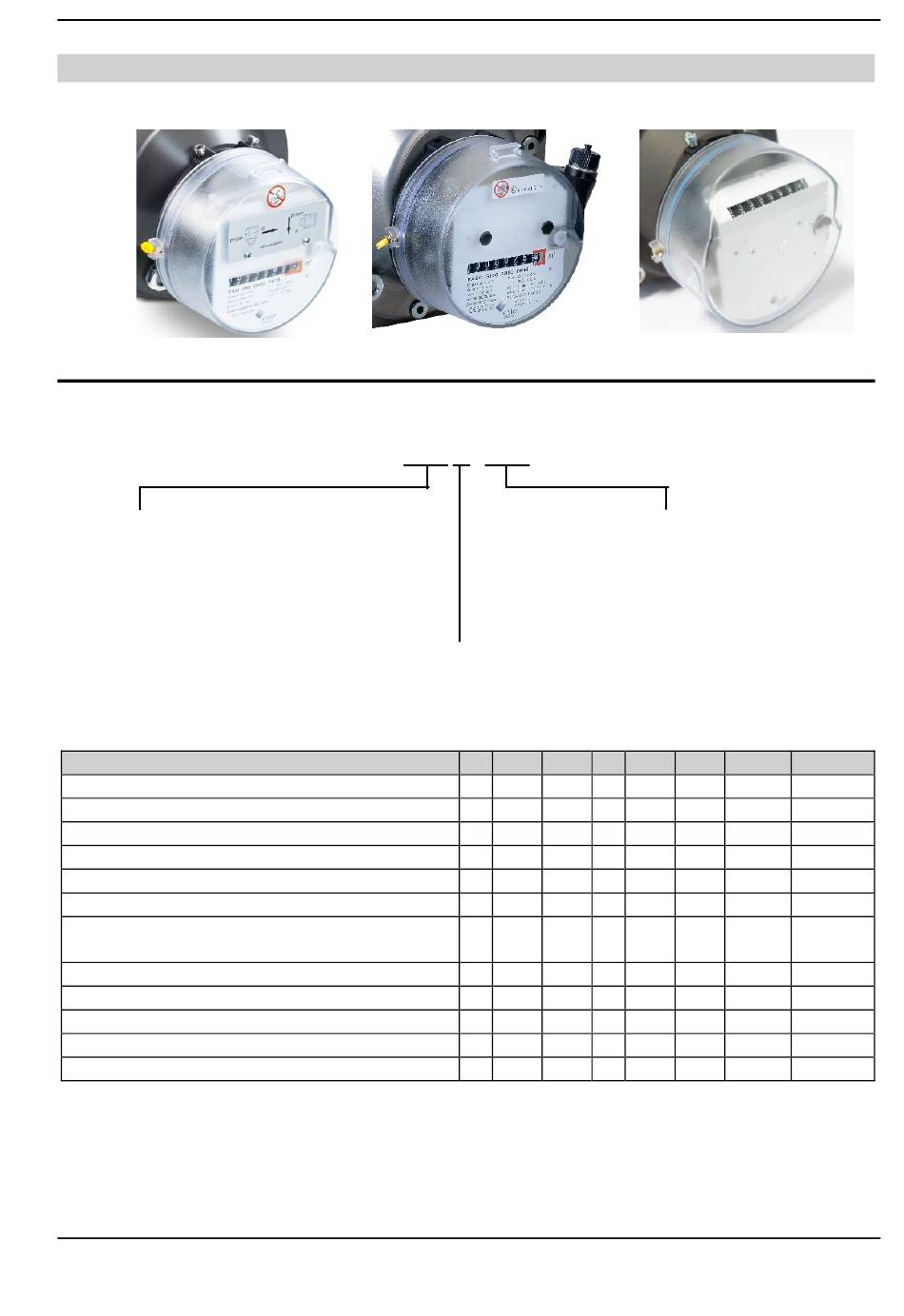

Fig. 3 | Index examples (left: S1D, centre: S1V, right: S2)
Model version:
S1:
plastic version 1
S2:
plastic version 2
MI2: aluminium
Property:
Mechanical roller index, 8-digit
2 x mechanical roller index, 8-digit
Index, can be turned through 355°
Protection class IP 67
45° reading
Vertical reading
Connection for external pulse generator IN-S
or IN-W
Suitable for internal pulse generator IN-Cxx
S1xR internal reed contact pulse generator
Optional: mechanical index drive
Optional: desiccant cartridge
Optional: ENCODER S1
Table 1 | Overview of the various index versions
1)
One index is covered depending on the installation position.
16
Index type code:
xxx x – xxx
R:
R3:
C11: integrated pulse generator IN-
Type:
V: vertical reading
D: double index
" ": 45° reading
S1 S1V S1D S2 S2V S2D MI-2
•
•
1)
-
-
•
•
•
•
•
-
-
•
•
•
-
-
-
•
-
-
-
-
•
•
73021678h
© Elster GmbH | All rights reserved. Subject to modification
Extensions:
integrated pulse generator E1
integrated pulse generator 2xE1
-
•
•
-
•
-
-
•
•
•
•
•
•
•
•
•
-
•
-
-
•
-
•
•
•
-
-
-
-
•
•
•
•
•
•
•
-
-
-
-
-
-
-
-
•
-
-
-
MI-2D
•
-
-
•
•
•
•
•
•
-
•
•
•
•
-
-
-
-
•
-
•
•
•
•
