Rotorgasmeters
Beschikbare talen
Beschikbare talen
Type RABO and RABO-CF with flange:
Size
Pressure
rating
DN 25
PN 10/16
CLASS 150
DN 32
PN 10/16
CLASS 150
DN 40
PN 10/16
CLASS 150
DN 50
PN 10/16
EBL 150
CLASS 150
DN 50
PN 10/16
EBL 171
CLASS 150
DN 80
PN 10/16
CLASS 150
DN 100
PN 10/16
CLASS 150
DN 150
PN 10/16
CLASS 150
Table 3 | Overview of screws and torque
* Typical
WARNING!
The maximum tightening torque must not exceed 40 Nm for M12,
100 Nm for M16 and 150 Nm for M20.
Type RABO-CT, threaded version:
You will require the following connection elements (which can be ordered
from Honeywell) for installing the meter in the pipe:

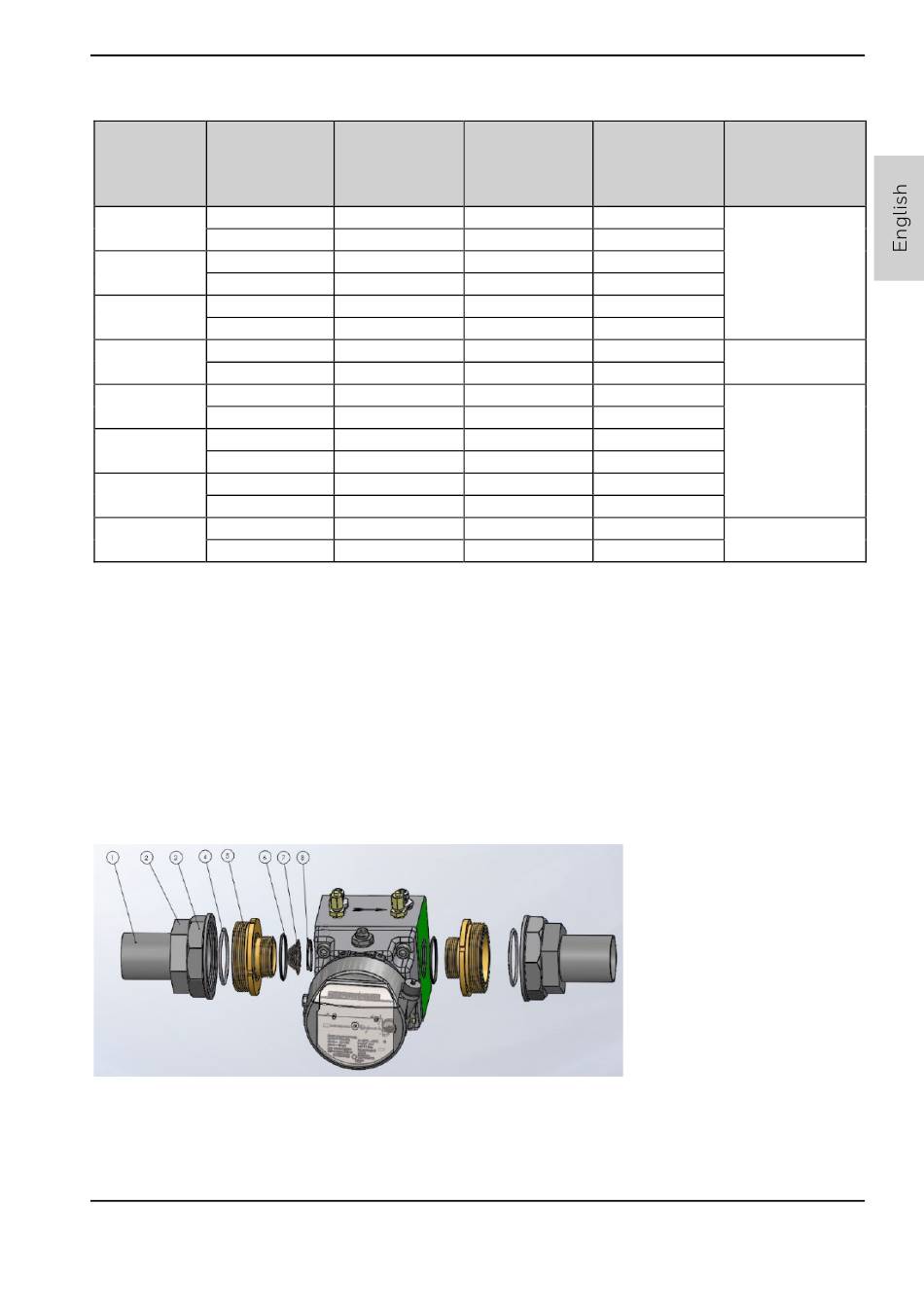

Fig. 8 | Connection elements for Type RABO-CT
73021678h
© Elster GmbH | All rights reserved. Subject to modification
Screw size
Number of
screws
M12
8
M12
8
M16
8
M12
8
M16
8
M12
8
M16
8
M16
8
M16
8
M16
8
M16
16
M16
8
M16
16
M16
16
M20
16
M20
16
Honeywell
Tightening
Thread reach
torque*
(dry)
[mm]
[Nm]
35
35
50
16 – 22
35
60
40
60
14 – 16
50
60
50
55
16 – 22
85
60
60
85
20 – 28
100
1. Pipe
2. Insert
3. Union nut
4. O-ring
5. Threaded part
6. O-ring
7. Strainer
8. Retaining ring
C
