Graphical user interface
A
B
Status indicators
Bumpers
C
Transport handle
D
E
Hooks
F
HEPA filter
Back pump housing
G

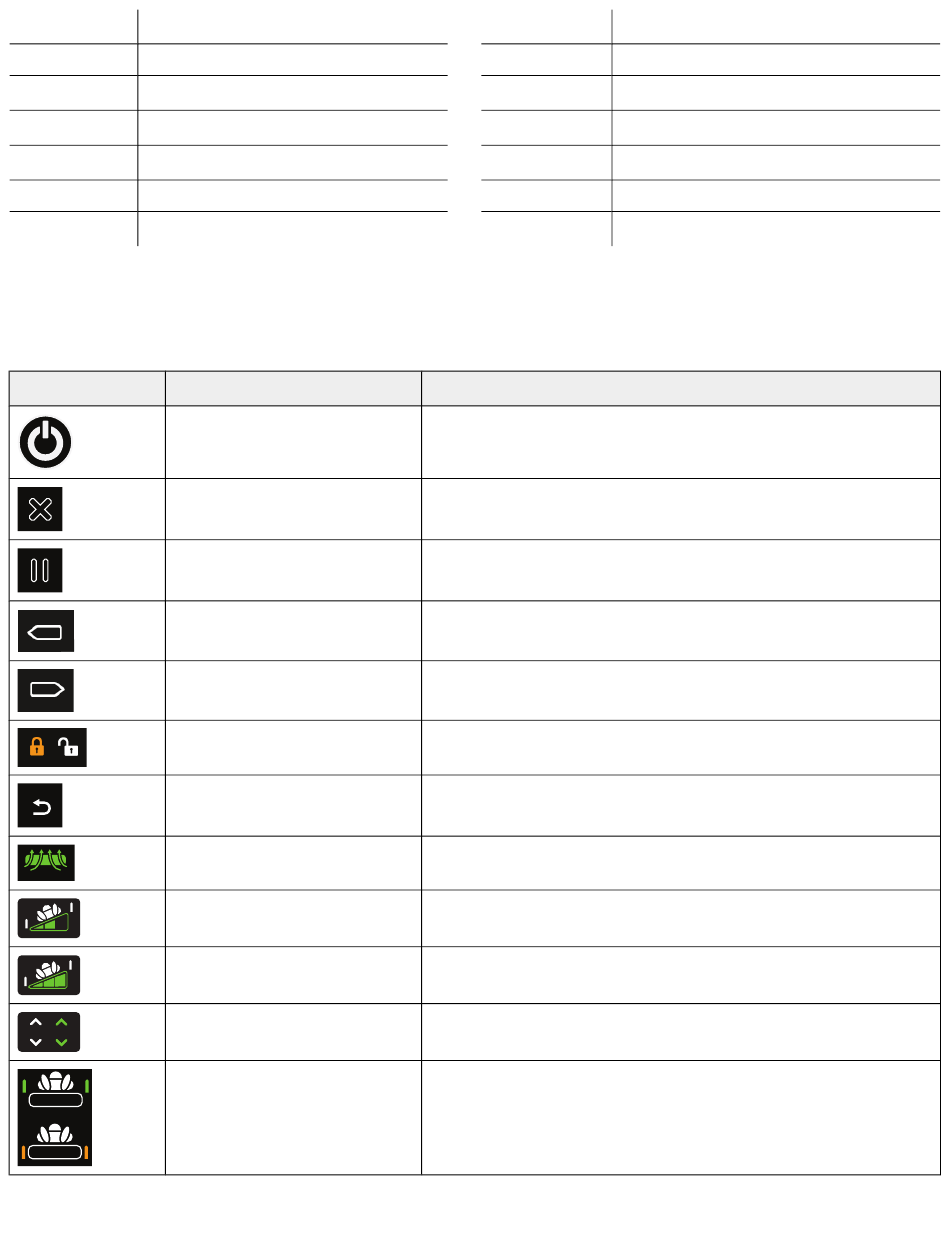

B B u u t t t t o o n n a a n n d d i i c c o o n n d d e e s s c c r r i i p p t t i i o o n n s s
The buttons are located on the outside of the graphical user interface.
I I c c o o n n
N N a a m m e e
Power button
Cancel icon
Pause icon
Action button, right
Action button, left
Lock or unlock icons
Back icon
Low Air Loss (LAL) icon
Fill default segment 2 icon
Maximum fill
Decrease or increase
Check siderails animated icon
2874-009-005 Rev AB.2
H
I
J
K
L
M
N
D D e e s s c c r r i i p p t t i i o o n n
See Powering on the pump (page 12) or Powering off the pump
(page 16)
Cancel current function, returns to the main menu
Pause current function
User selects a function
User selects a function
See Lock or unlock product functions (page 15)
Returns to the previous screen
Low Air Loss function active, on by default, see Powering on or off
Low Air Loss (LAL) (page 13)
Select patient turn to the right or to the left
Maximum fill is 3 bars, see Increasing or decreasing T T r r u u T T u u r r n n
(page 14)
Decrease or increase patient turn
Reminder to check siderails before T T r r u u T T u u r r n n is activated
Power inlet
Anti-vibration foot
Fuse
Flex grip
Hose port
Hose
Front pump housing
