MX2 Installation: Back Depth Adjustment

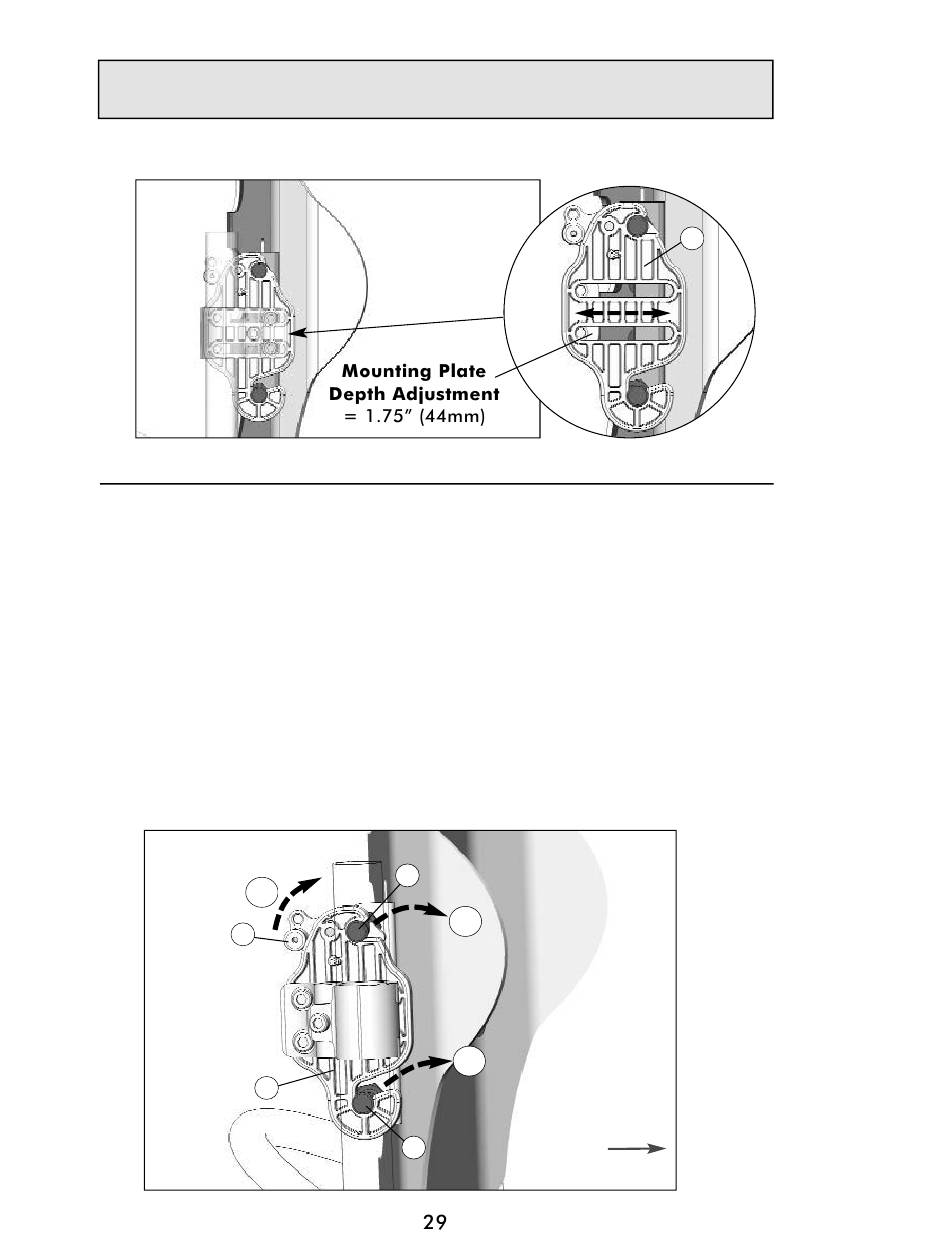

Fig. 11
4.9 Removing the MX2 Back from QR Hardware
1
Remove/disengage the MX2 back from the mounting plates (A) as follows
(Refer to Fig.12 below):
i. Standing behind the wheelchair, simultaneously lift up on the latch
release mechanism (B) on both mounting plates (1);
ii. With the latches open, push the top of the MX2 back forward (2) to
disengage the upper mounting pins (C) from the mounting plates (A).
iii. With the upper pins disengaged, lift the MX2 Back upward and forward
(3) to release the lower mounting pins (D) from the mounting plates.
Removing/Disengaging the MX2 Back
Fig. 12
1
B
A
