5. Check that the saddle u is still aligned with the bike.
6. Tighten the Allen screw 8 of the saddle clamp to lock the saddle.
7. Check whether the saddle
4 If the saddle can still move, the quick release 8
8. Carefully step onto the e-bike and sit on the saddle u.
9. Turn the pedal rd to the lowest position and place your heel on the pedal.
If you must fully extend your leg to reach the pedal in the lowest position, your saddle is too
4
high.
If you can stand with both feet flat on the ground, your saddle is too low.
4
CAUTION
6
• A loose saddle can move at unexpected moments and lead to hazardous situations or
accidents. Always make sure you have sufficiently tightened the saddle clamp and that the
saddle cannot make any unexpected movements.
4.8.1.2. Angle and horizontal position

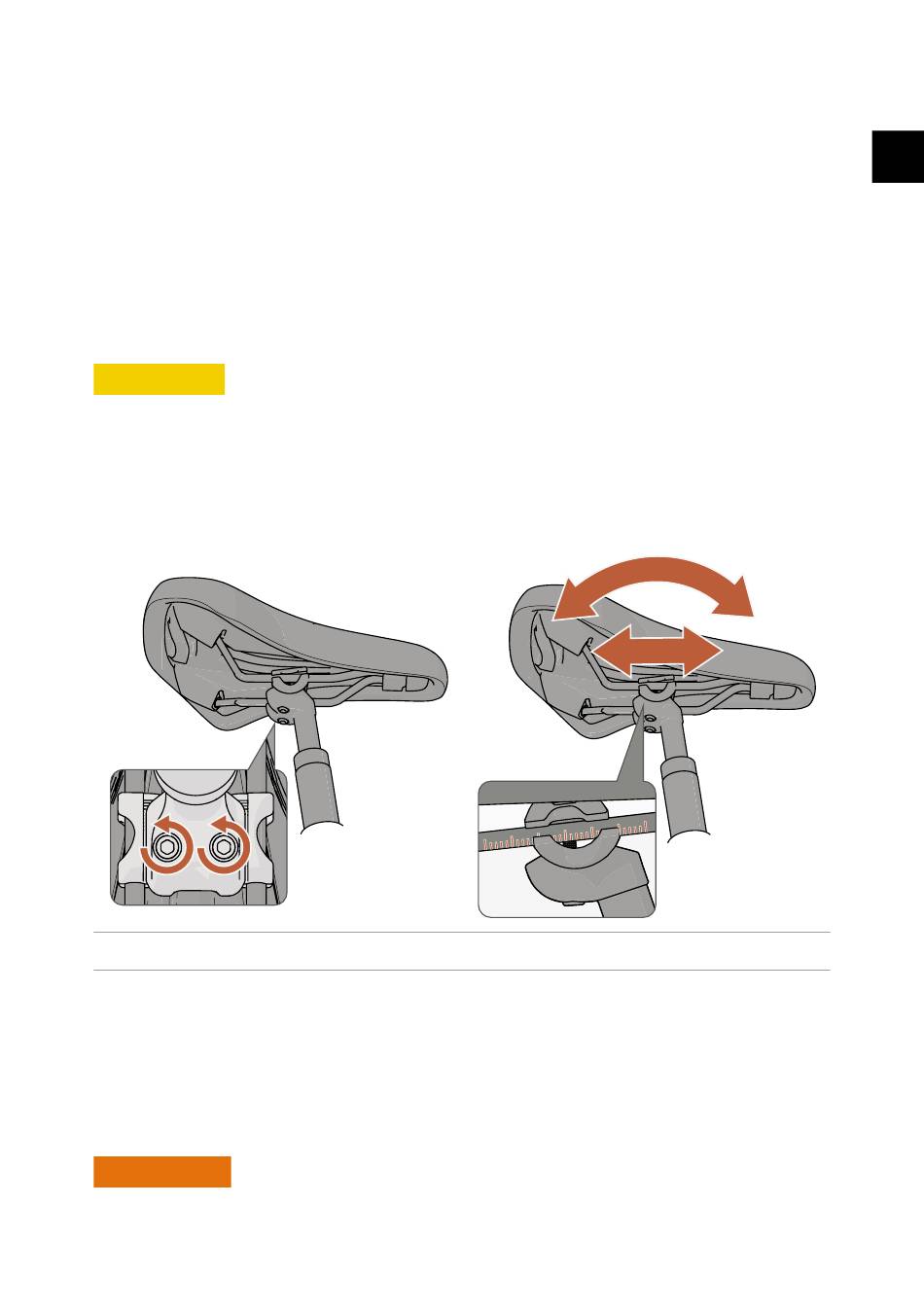

Figure 23 - Loosening adjusting screws and adjusting saddle position.
1. Adjust the angle of the saddle u using the two adjusting screws under the saddle.
2. Tilt the saddle
to the desired angle.
u
Optional: Loosen both adjusting screws slightly and slide the saddle forwards or backwards to
4
adjust the horizontal position of the saddle.
3. Lock the saddle position by tightening the adjusting screws with the tightening torque
indicated on the underside of the saddle clamp. Use a torque wrench for this.
WARNING
6
When fitting or adjusting the saddle, two bolts must be tightened to secure the saddle.
can turn or move up and down.
u
is not tight enough.
