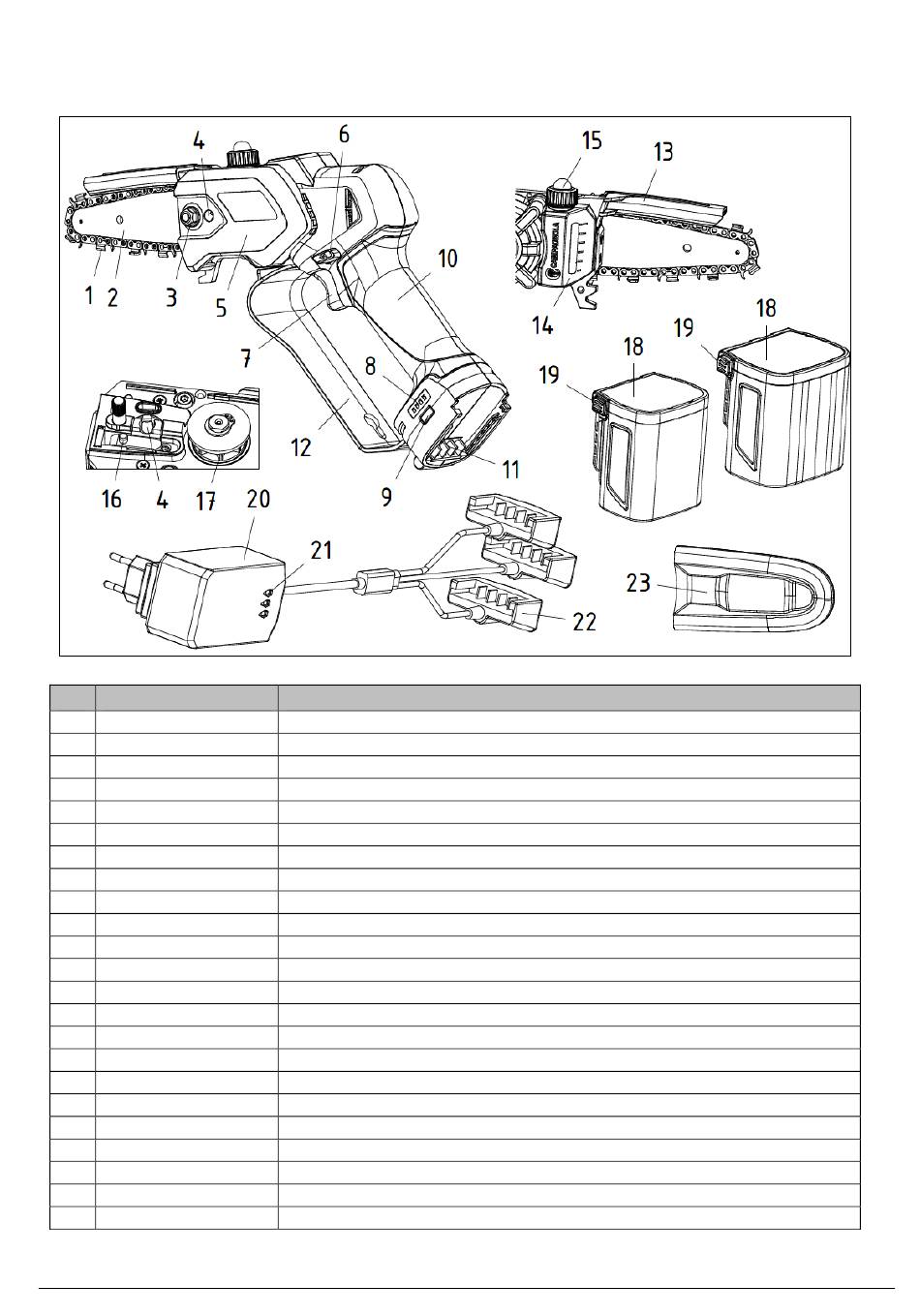

3.3 PRODUCT COMPOSITION
The following section shows the composition of the product (*) as illustrated in figure, while the table shows the
names of the constituent elements of the product with their functional description.
Pos. Denomination
1
Chain
2
Cutting bar
3
Fixing nut
4
Adjusting screw
5
Front casing
Safety catch
6
7
Operating lever
8
Indicator light
9
ON/OFF button
10 Handle
11 Battery connector
12 Hand guard
13 Chain guard
14 Oil tank
15 Tank cap
16 Chain tensioner pin
17 Chain pinion
18 Battery pack
19 Release flaps
20 Battery charger
21 LED light indicators
22 Charging connectors
23 Bar-cover
0310.0353_04
Function
To cut branches, trunks, etc.
To guide the chain
To lock the bar
To adjust chain tension
To cover the pinion and secure the chain bar
To stop start-up
To press for actuation
To indicate the remaining battery capacity
To turn the tool on and off
To handle the product
To connect the tool to the battery.
To protect the operator's hand from the risk of contact with the chain
To protect the operator from kickback
Contains the oil for chain lubrication
To manually lubricate the chain and to close the oil reservoir
Chain tension adjustment device.
Operates the pruner chain
To power the tool
To insert/remove the battery into/from the tool
To charge up to three batteries at the same time
To show the battery charge status
To connect the battery charger and the battery pack
Protective sheath of the chain (at rest)
