Wiring work

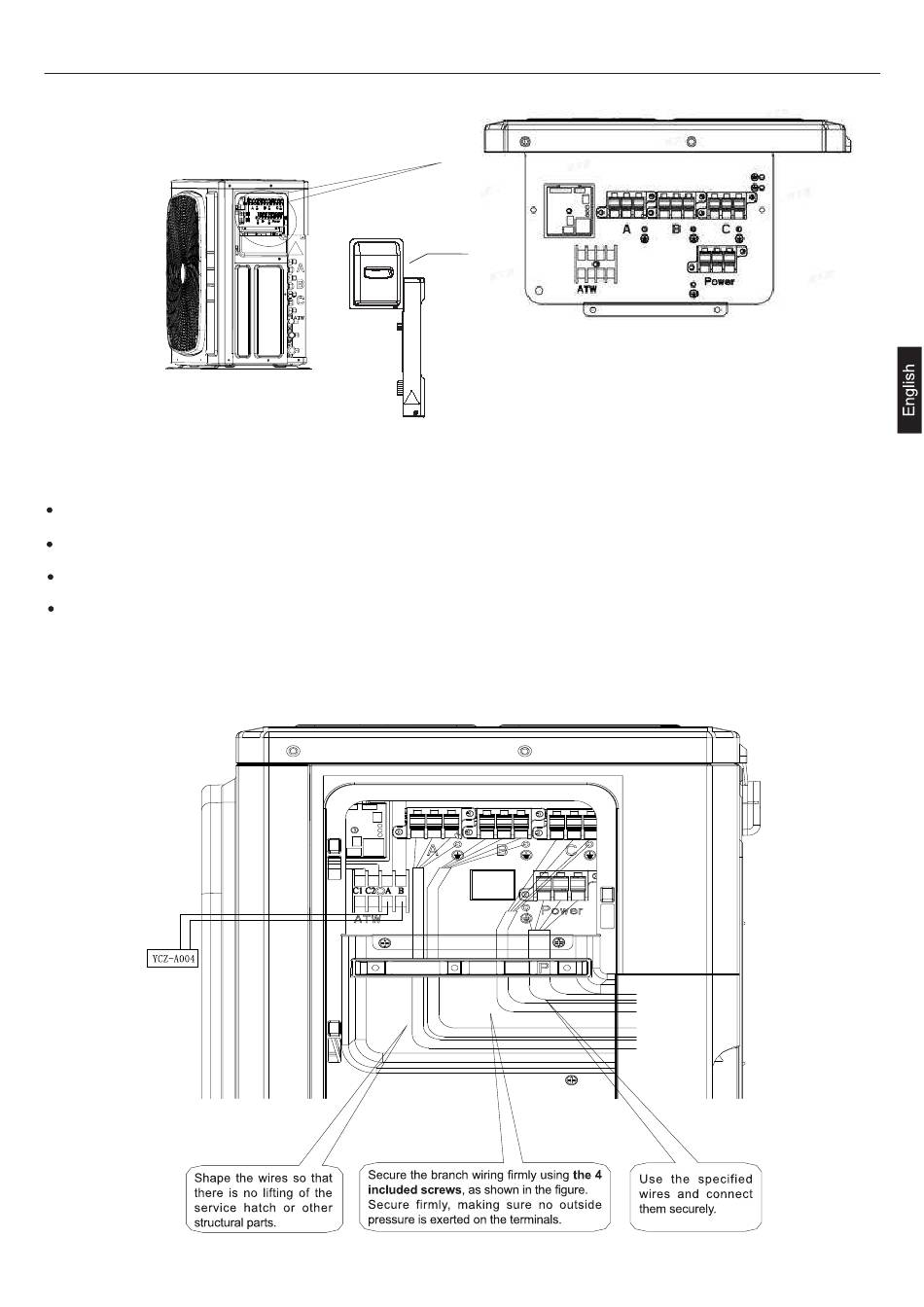

4. Wiring method of indoor unit
Loosen wire cover and connect the power cord and communication wire of indoor unit to the terminal correspondingly.
Note:
When connecting power cord to power supply terminal, please pay attention to the following items:
Do not connect the power cord with different dimensions to the same connection wire end.
Improper contact will cause heat generation.
Do not connect the power line with different dimensions to the same grounding wire end.
Improper contact will affect protection.
Do not connect the power line to the connecting end of communication wire.
Incorrect connection will cause damage to the connected unit.
The wiring should ensure that the ground line is the last one to be broken off by force.
5. Example wiring diagram.
Wiring diagram please refers to
Valve cover
the following.
27
