q

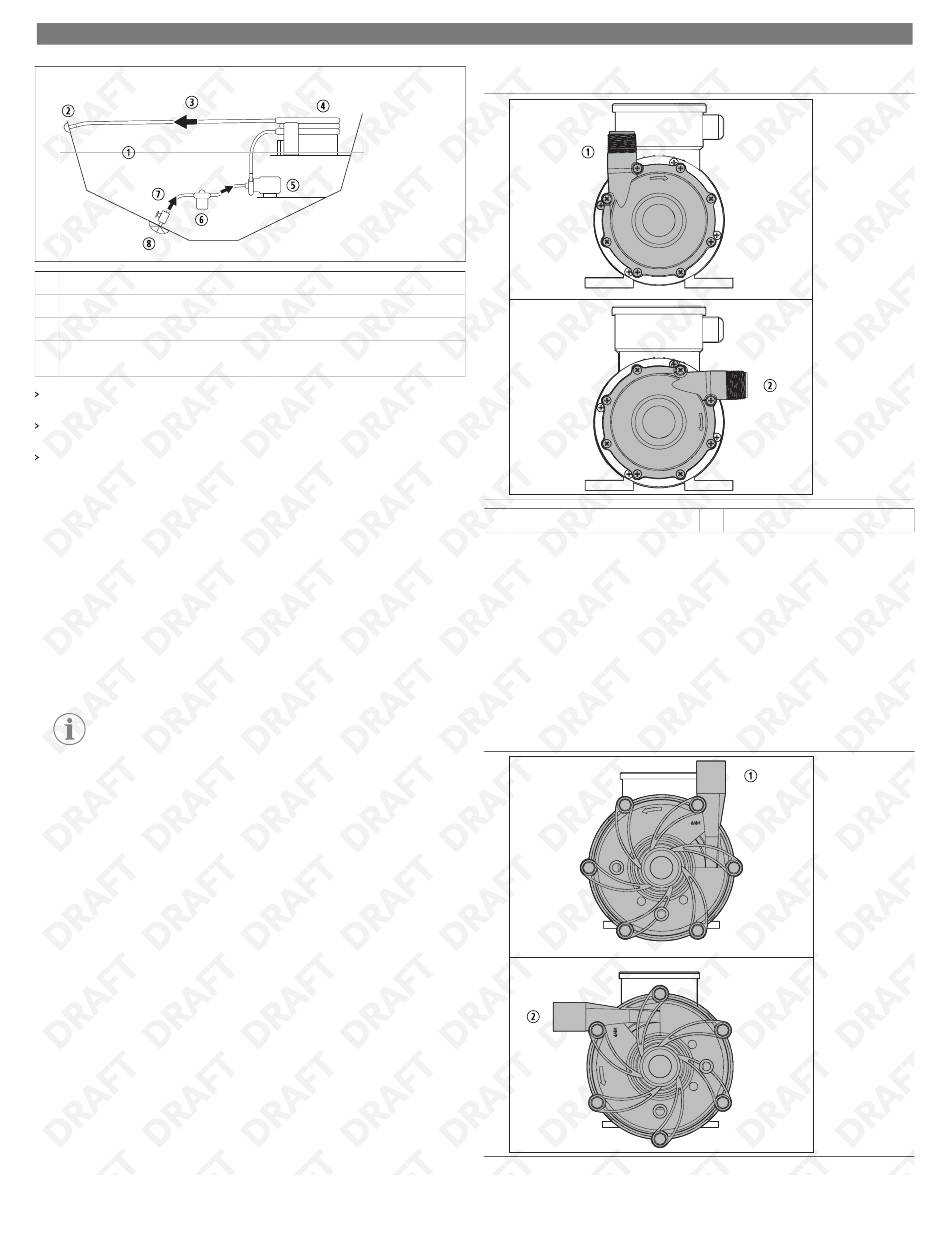

① Water line
② Seawater outlet
③ Outlet flow
④ AC condenser coil
Place the pump as far below the water line as possible, for best performance and to
minimize suction li.
Place the pump in a location that will allow mounting in a level, horizontal position, on
a secure foundation.
Ensure adequate ventilation around the pump for proper operation and cooling of
the motor.
8.3
Rotating the pump head (optional)
The pump is preconfigured with a vertical discharge orientation, which is applicable to
most installations.
In some applications, rotating the pump head may make pump and piping installation
easier. Rotating the pump head is optional and should be done before mounting the
pump.
1. Make sure the O-ring is properly seated in the groove aer rotating.
The O-ring is lubricated, and should not need more lubrication.
2. When the pump discharge is in a horizontal configuration, the motor must be
shimmed to raise the front of the pump to avoid interference.
NOTE Use the plastic shipping shims (packaging material) to give extra
support under the motor feet.
⑤ Pump
⑥ Strainer
⑦ Inlet flow
⑧ Sea-cock (ball valve) and scoop-type,
through-hull inlet
8.3.1
Rotating the pump head (P030)
① Vertical discharge
1. Place the motor in an upright position, resting on the fan end of the motor.
2. Remove the eight screws from the pump housing.
3. Pull the housing away from the motor adapter/barrier.
4. Rotate the housing 90 ° , aligning the screw holes on the housing and motor
adapter/barrier.
5. Push down on the housing to seat it on the motor adapter/barrier.
6. Reinstall the screws.
8.3.2
Rotating the pump head (other models)
Use the following instructions to rotate the pump head of models P045, P062, P075,
P100, P137, P150, P200.
EN
② Horizontal discharge
5
