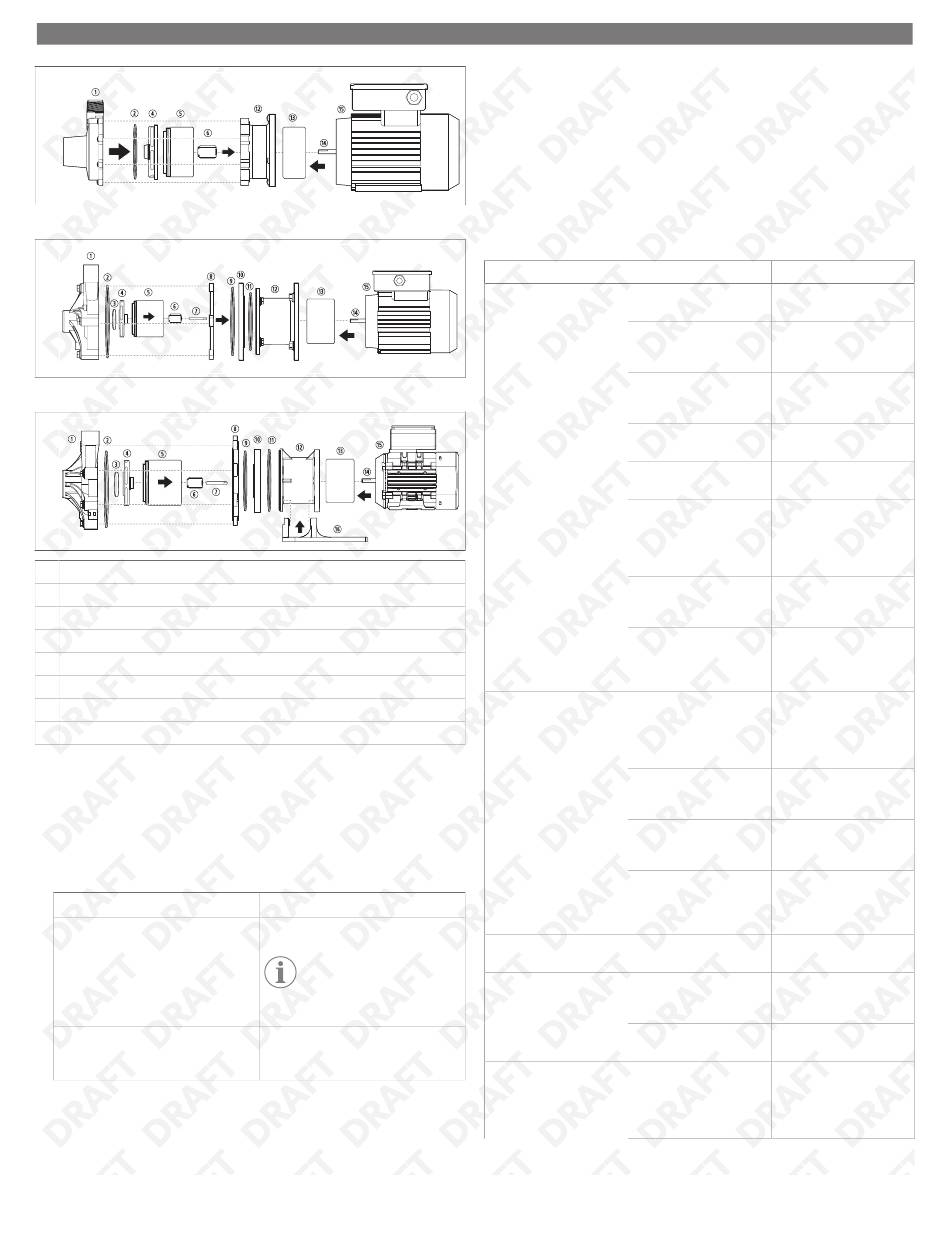

Dometic PM Series Montagehandleiding En Gebruiksaanwijzing pagina 9
Magnetische aandrijving centrifugaalpomp
Beschikbare talen
Beschikbare talen
P045, P062, P075, P100 reassembly
P137, P150, P200 reassembly
① Pump housing
② Housing O-ring
③ Impeller thrust ring
④ Impeller assembly
⑤ Impeller drive assembly
⑥ Impeller bushing
⑦ Impeller sha
⑧ Motor barrier
1. P045, P062, P075, P100, P137, P150, P200 only:
a) Place the clamp O-ring on the clamp ring, and install it on the motor adapter.
Press firmly to ensure a tight seal.
b) Place the barrier O-ring on the motor barrier and install it on the motor adapter.
c) Install the impeller sha, aligning the flats on the sha with the ones in the motor
barrier. Make sure the impeller sha is completely seated in the motor barrier.
2. Assemble the impeller thrust ring, the impeller drive assembly, and the impeller
bushing.
Option
P030
P045, P062, P075, P100, P137, P150,
P200
3. Place the housing O-ring in the groove on the pump housing and apply an oil-free
lubricant.
4. Install the pump housing onto the pump, making sure the discharge is in the correct
orientation for the installation.
⑨ Motor barrier
⑩ Clamp ring (not included on P200)
⑪ Clamp O-ring
⑫ Motor adapter
⑬ Outer drive magnet
⑭ Motor sha
⑮ Motor
⑯ Foot (not included on P200)
Description
Assemble the impeller bushing.
NOTE The P030 impeller as-
sembly has the thrust ring and
drive assembly included within
it.
Assemble the impeller thrust ring, the im-
peller drive assembly, and the impeller
bushing.
5. Hold the pump housing with one hand, install and finger-tighten two bolts or screws
and washers (if present) in opposite locations.
6. Install the remaining pump housing fasteners and finger-tighten.
7. Use a socket wrench or screwdriver (depending on fasteners) to tighten all bolts
evenly using a star pattern.
11 Troubleshooting
Use the instructions that follow to resolve occurrences that are not a result of defective
workmanship or materials.
Problem
Possible cause
The flow is insufficient or
There is an air leak in the
nonexistent.
suction piping.
The pump has not been
primed.
The system head is higher
than expected.
There is a closed valve.
The viscosity or specific
gravity is too high.
The suction li is too high or
there is insufficient NPSH.
There is a clogged suction
line or impeller vane.
The motor is rotating incor-
rectly.
The pressure is low.
There is air or gas in the liq-
uid that is running through
the pump.
The impeller diameter is too
small.
The system head is lower
than expected.
The motor is rotating incor-
rectly.
The pump is no longer
There is a leak in the suction
primed.
piping.
The pump is using an exces-
The voltage is too low.
sive amount of power.
The specific gravity or vis-
cosity is too high.
The pump is vibrating or
The pump is cavitating from
making a loud noise.
improper suction or feed.
EN
Suggested remedy
Check the pipe connections
and tighten the seals.
Ensure the pump head is
filled with fluid before start-
ing.
Check the application re-
quirements; a larger pump
may be required.
Open the suction and dis-
charge valves.
Check the fluid mixture con-
centrations.
Ensure the proper inlet
pressure. The pump should
be either below water lev-
el or in a fully pressurized
loop.
Check the inlet strainer and
pump lines, and remove de-
bris.
Check the wiring to ensure
the installed configuration
matches wiring diagram on
the pump.
Bleed the air out of the sys-
tem using an automatic
bleeder or manually open a
bleeder line at the highest
point.
Check the application re-
quirements; a larger pump
may be required.
Check the application re-
quirements; a smaller pump
may be required.
Check the wiring to ensure
the installed configuration
matches the wiring diagram
on the pump.
Check the pipe connections
and tighten the seals.
Check the generator power
output to ensure it is main-
taining the proper voltage.
Check the fluid mixture con-
centrations.
Ensure the proper inlet
pressure is maintained.
Check the inlet strainer and
the pump lines, and remove
debris.
9
